LTC2064IDD#PBF - Analog Devices

Description: Op Amp Dual Auto Zero/Chopper R-R I/O 5.25V Medical 10-Pin DFN EP Tube

Download LTC2064IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

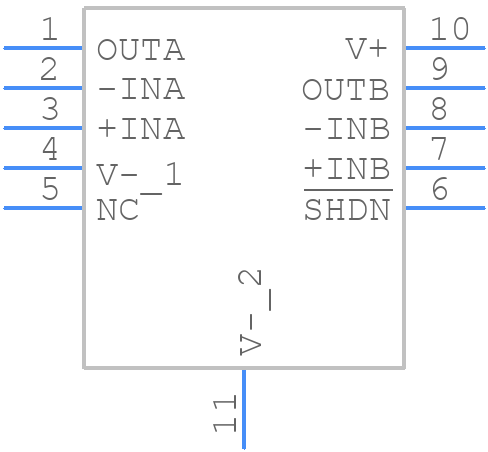

LTC2064IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2064IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C)
click to zoom
3D Models
LTC2064IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C)
click to zoom

LTC2064IDD#PBF Details

  • Manufacturer Part Number:

    LTC2064IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00003 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.0035 V/us

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    316227.77

  • Wideband:

    NO

  • Width:

    3 mm

LTC2064IDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2064IDD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • To ensure the LTC2064IDD#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be added if necessary. Additionally, the ambient temperature should be monitored to ensure it stays within the specified range.
  • Potential sources of error in the LTC2064IDD#PBF include noise, thermal drift, and component tolerances. These can be mitigated by using a low-noise power supply, minimizing thermal gradients, and using high-precision external components. Additionally, the device's internal calibration feature can be used to reduce errors.
  • To troubleshoot issues with the LTC2064IDD#PBF, start by verifying the power supply voltage and ensuring that the device is properly configured. Check the input and output connections for any signs of damage or corrosion. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet for troubleshooting guidelines specific to the device.
  • Yes, the LTC2064IDD#PBF can be used in high-reliability or safety-critical applications, but additional considerations are necessary. These include ensuring the device is operated within its specified temperature range, using redundant or fault-tolerant designs, and implementing error detection and correction mechanisms. Additionally, the device's reliability and failure modes should be carefully evaluated, and a thorough risk assessment should be performed.
