LTC2065HF#PBF - Analog Devices

Description: Quad 2?A Supply Current, Low IB, Zero-Drift Operational Amplifiers

Download LTC2065HF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

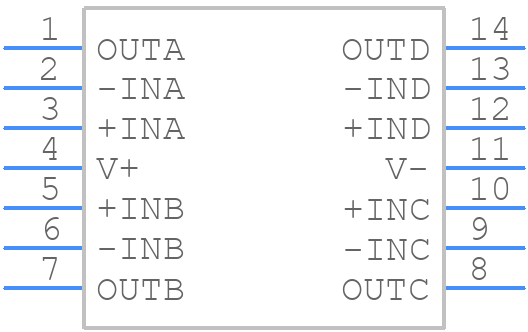

Symbol
LTC2065HF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2065HF#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC2065HF#PBF - Analog Devices - 3D model - Small Outline Packages - 14-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC2065HF#PBF Details

  • Manufacturer Part Number:

    LTC2065HF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1650 (F14)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.0035 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    316227.77

  • Wideband:

    NO

  • Width:

    4.4 mm

LTC2065HF#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2065HF#PBF involves keeping the input and output pins away from each other, using a solid ground plane, and placing the device close to the analog ground. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the signal traces short and direct.
  • To ensure that the LTC2065HF#PBF is operating within its specified temperature range, it's recommended to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation.
  • The recommended power-up sequence for the LTC2065HF#PBF involves applying the analog supply voltage (VCC) before the digital supply voltage (VDD). This ensures that the internal analog circuits are powered up before the digital circuits, which helps to prevent latch-up and ensures proper device operation.
  • To handle EMI and RFI emissions from the LTC2065HF#PBF, it's recommended to use a shielded enclosure, keep the device away from other sensitive circuits, and use EMI filters or shielding on the input and output lines. Additionally, it's recommended to follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
  • The recommended method for debugging and troubleshooting the LTC2065HF#PBF involves using a logic analyzer or oscilloscope to monitor the device's input and output signals, checking the device's power supply and ground connections, and consulting the datasheet and application notes for guidance on common issues and troubleshooting techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2065HF#PBF Overview

Use the download button to access the LTC2065HF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC20, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
