LTC2065HUD#PBF - Analog Devices

Description: Quad 2?A Supply Current, Low IB, Zero-Drift Operational Amplifiers

Download LTC2065HUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

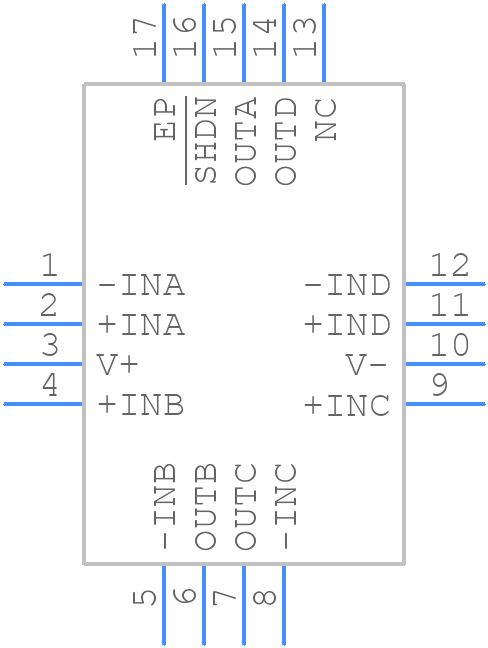

LTC2065HUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2065HUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm).
click to zoom
3D Models
LTC2065HUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm).
click to zoom

LTC2065HUD#PBF Details

  • Manufacturer Part Number:

    LTC2065HUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1782

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.0035 V/us

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    316227.77

  • Wideband:

    NO

  • Width:

    3 mm

LTC2065HUD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2065HUD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and direct.
  • To ensure the LTC2065HUD#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad, and a heat sink can be attached to the exposed pad. Additionally, the ambient temperature should be monitored to ensure it remains within the specified range.
  • Potential sources of error in the LTC2065HUD#PBF include offset voltage, gain error, and noise. These can be mitigated by using a high-precision voltage reference, ensuring proper PCB layout and grounding, and using filtering and shielding to reduce noise. Additionally, calibration and trimming can be used to minimize offset and gain errors.
  • To troubleshoot issues with the LTC2065HUD#PBF, start by verifying the power supply voltage and ensuring it's within the specified range. Check the input and output voltages using an oscilloscope, and verify that the device is properly configured and connected. If issues persist, consult the datasheet and application notes for guidance, and consider seeking support from Analog Devices Inc. or a qualified engineer.
  • Operating the LTC2065HUD#PBF beyond its specified maximum ratings can result in reduced reliability, decreased performance, and potentially even device failure. Exceeding the maximum ratings can cause permanent damage to the device, and may also void the warranty. It's essential to ensure that the device is operated within its specified ratings to ensure reliable and optimal performance.
