LTC2065IUD#PBF - Analog Devices

Description: Quad 2?A Supply Current, Low IB, Zero-Drift Operational Amplifiers

Download LTC2065IUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

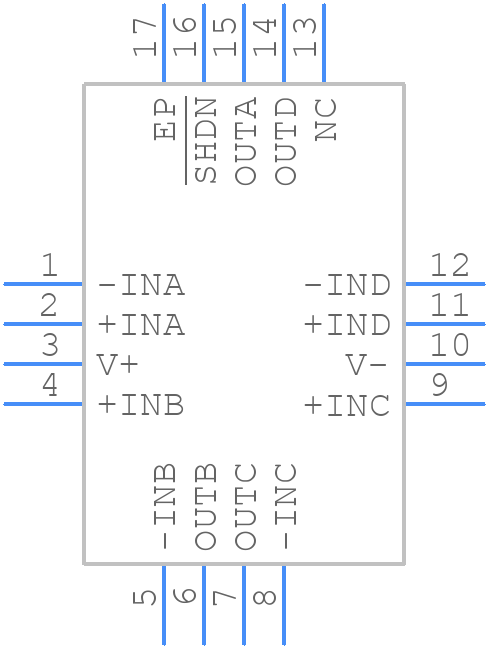

LTC2065IUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2065IUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm).
click to zoom
3D Models
LTC2065IUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 16-Lead Plastic QFN (3mm × 3mm).
click to zoom

LTC2065IUD#PBF Details

  • Manufacturer Part Number:

    LTC2065IUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1782

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-05-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00003 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.0035 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    20

  • Voltage Gain-Min:

    316227.77

  • Wideband:

    NO

  • Width:

    3 mm

LTC2065IUD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2065IUD#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it is recommended to use a low-ESR capacitor for the input capacitor and to minimize the length of the input traces.
  • To ensure the LTC2065IUD#PBF is operating within its specified temperature range, it is recommended to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation.
  • Exceeding the maximum input voltage rating of the LTC2065IUD#PBF can result in permanent damage to the device, including latch-up, overheating, and reduced reliability. It is essential to ensure that the input voltage remains within the specified range to prevent damage and ensure reliable operation.
  • To troubleshoot issues with the LTC2065IUD#PBF, it is recommended to check the input and output voltage levels, ensure proper decoupling and bypassing, and verify that the device is operating within its specified temperature range. Additionally, it may be helpful to consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The LTC2065IUD#PBF is a high-reliability device, but it is essential to follow proper design and manufacturing practices to ensure the device meets the requirements of the specific application. Additionally, it is recommended to consult with Analog Devices Inc. or a qualified reliability engineer to determine the suitability of the device for a particular high-reliability or safety-critical application.
