LTC2067HDD#PBF - Analog Devices

Description: IC OPAMP ZERO-DRIFT 2 CIRC 10DFN

Download LTC2067HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

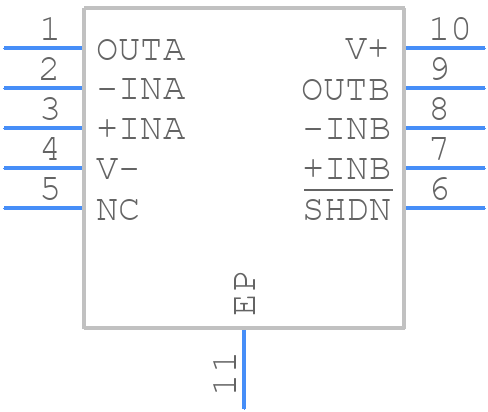

Symbol
LTC2067HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2067HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LTC2067HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom

LTC2067HDD#PBF Details

  • Manufacturer Part Number:

    LTC2067HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Bias Current-Max (IIB) @25C:

    0.000035 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    123 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    17500 V/us

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    100

  • Voltage Gain-Min:

    398107

  • Wideband:

    NO

  • Width:

    3 mm

LTC2067HDD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2067HDD#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it is recommended to use a low-ESR capacitor for the output filter and to minimize the length of the traces connecting the device to the input and output capacitors.
  • To ensure the LTC2067HDD#PBF is operating within its specified temperature range, it is recommended to provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • Exceeding the maximum input voltage rating of the LTC2067HDD#PBF can cause permanent damage to the device, including latch-up, overheating, and reduced reliability. It is essential to ensure that the input voltage remains within the specified range to prevent damage and ensure reliable operation.
  • To troubleshoot issues with the LTC2067HDD#PBF, it is recommended to check the device's input and output voltages, ensure proper decoupling and filtering, and verify that the device is operating within its specified temperature range. Additionally, checking the PCB layout and ensuring that the device is properly soldered can help identify and resolve issues.
  • The LTC2067HDD#PBF is a high-reliability device, but it is essential to follow proper design and manufacturing practices to ensure the device meets the requirements of a safety-critical application. This includes following the recommended layout and placement guidelines, using proper thermal management, and ensuring that the device is operated within its specified temperature range.
