LTC2068HUD#PBF - Analog Devices

Description: Quad 10μA Supply Current, Low IB, Zero-Drift Operational Amplifier

Download LTC2068HUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

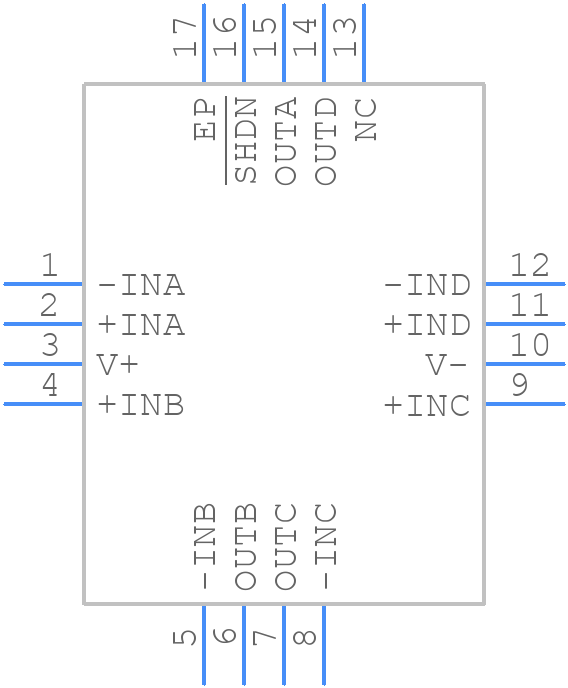

Symbol
LTC2068HUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2068HUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Plastic QFN (3mm × 3mm)_21
click to zoom
3D Models
LTC2068HUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Plastic QFN (3mm × 3mm)_21
click to zoom

LTC2068HUD#PBF Details

  • Manufacturer Part Number:

    LTC2068HUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1782

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-06-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Bias Current-Max (IIB) @25C:

    0.000035 µA

  • Common-mode Reject Ratio-Min:

    103 dB

  • Common-mode Reject Ratio-Nom:

    123 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    17500 V/us

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    100

  • Voltage Gain-Min:

    398107

  • Wideband:

    NO

  • Width:

    3 mm

LTC2068HUD#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2068HUD#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane to minimize noise coupling.
  • To optimize the performance of the LTC2068HUD#PBF in high-frequency applications, it's recommended to use a low-ESR capacitor for the input bypass, minimize the length of the input traces, and use a shielded cable for the input signal. Additionally, it's recommended to use a high-frequency capable PCB material and to minimize the number of vias and layer transitions.
  • The maximum operating temperature range for the LTC2068HUD#PBF is -40°C to 125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • To ensure the reliability and longevity of the LTC2068HUD#PBF in harsh environments, it's recommended to follow proper PCB design and layout guidelines, use a conformal coating, and ensure proper thermal management. Additionally, it's recommended to use a device with a high temperature rating and to follow the recommended storage and handling procedures.
  • Common failure modes of the LTC2068HUD#PBF include overvoltage, undervoltage, and overheating. These can be mitigated by using a voltage regulator to regulate the input voltage, using a thermal sensor to monitor the device temperature, and ensuring proper thermal management through the use of a heat sink or thermal interface material.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2068HUD#PBF Overview

Use the download button to access the LTC2068HUD#PBF schematic symbol, PCB footprint, and 3D model.
