LTC2601IDD#TRPBF - Analog Devices

Description: IC DAC 16BIT SGL R-R VOUT 10DFN

Download LTC2601IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

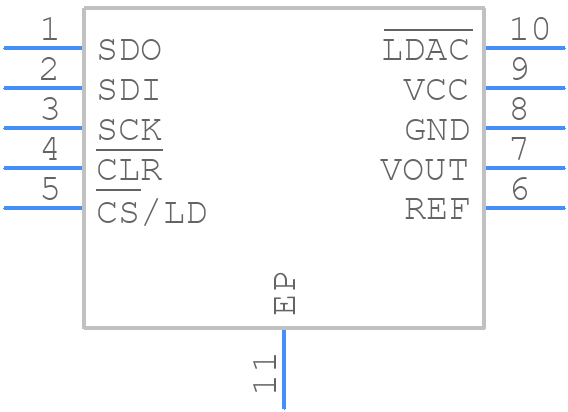

LTC2601IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2601IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)_1
click to zoom
3D Models
LTC2601IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm)_1
click to zoom

LTC2601IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC2601IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2601IDD#TRPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2601IDD#TRPBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain of the device to achieve the desired output. It is also recommended to use a high-precision voltage reference and to calibrate the device in the same environment it will be used in.
  • The LTC2601IDD#TRPBF has a maximum junction temperature of 150°C. To ensure safe operation, it is recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid blocking airflow around the device. Additionally, it is recommended to monitor the device's temperature and adjust the operating conditions accordingly.
  • To troubleshoot issues with the LTC2601IDD#TRPBF, start by verifying the power supply voltage, checking for proper grounding and decoupling, and ensuring the input and output connections are correct. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The LTC2601IDD#TRPBF is a high-reliability device, but it is not certified for use in safety-critical applications. However, Analog Devices provides a range of devices that are certified for use in safety-critical applications, such as the Automotive and Industrial grades of the LTC2601. Consult the datasheet and Analog Devices' website for more information on certifications and compliance.
