LTC2602CMS8#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 2x 16-B R2R DACs in 8-Lead MS

Download LTC2602CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

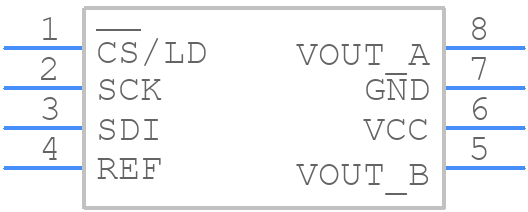

Symbol
LTC2602CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2602CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP-1
click to zoom
3D Models
LTC2602CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP-1
click to zoom

LTC2602CMS8#PBF Details

  • Manufacturer Part Number:

    LTC2602CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2602CMS8#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2602CMS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage reference, use a high-precision voltage reference, such as the LTC6655, and connect it to the VREF pin. Also, ensure that the voltage reference is decoupled from the power supply using a 10uF capacitor.
  • The recommended power-up sequence for the LTC2602CMS8 is to first apply the analog power supply (AVCC), followed by the digital power supply (DVCC), and then the voltage reference (VREF). This ensures that the device powers up correctly and minimizes the risk of latch-up.
  • To minimize noise and interference, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the analog inputs. Also, use a ground plane and decouple the power supplies using 10uF capacitors.
  • The maximum clock frequency supported by the LTC2602CMS8 is 50MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2602CMS8#PBF Overview

Use the download button to access the LTC2602CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
