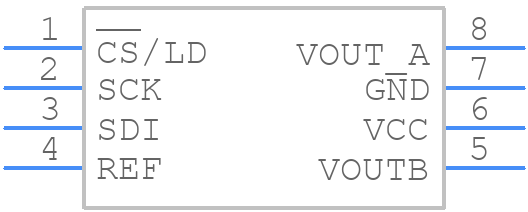

LTC2602IMS8#PBF - Analog Devices

LTC2602IMS8#PBF Frequently Asked Questions (FAQs)

• What is the recommended layout and placement for the LTC2602IMS8?
  The recommended layout and placement for the LTC2602IMS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a low-ESR capacitor for the VCC bypass capacitor.
• How do I ensure the accuracy and linearity of the DAC output?
  To ensure the accuracy and linearity of the DAC output, it is recommended to use a high-quality voltage reference, ensure the input clock frequency is within the specified range, and use a low-noise power supply. Additionally, the output should be filtered to remove any high-frequency noise.
• What is the maximum clock frequency that can be used with the LTC2602IMS8?
  The maximum clock frequency that can be used with the LTC2602IMS8 is 50 MHz. However, it is recommended to use a clock frequency between 10 MHz to 20 MHz for optimal performance.
• How do I handle the power-on reset (POR) and brown-out reset (BOR) functions?
  The POR and BOR functions can be handled by connecting the POR pin to a capacitor and a resistor to the VCC pin. The capacitor value should be chosen based on the desired reset time, and the resistor value should be chosen based on the desired reset threshold.
• What is the recommended method for synchronizing multiple LTC2602IMS8 devices?
  The recommended method for synchronizing multiple LTC2602IMS8 devices is to use a common clock source and to synchronize the devices using the SYNC pin. The SYNC pin can be connected to a common clock source, and the devices can be synchronized by asserting the SYNC pin low.
