LTC2604CGN#PBF - Analog Devices

Description: LTC2604CGN#PBF, 16 bit-Bit DAC Quad SPI, Microwire, 16-Pin SSOP N

Download LTC2604CGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

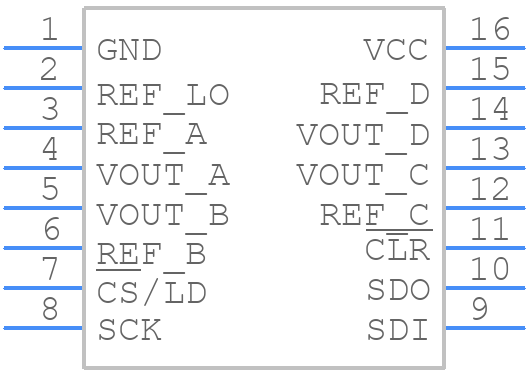

LTC2604CGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2604CGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN(DFN)
click to zoom
3D Models
LTC2604CGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN(DFN)
click to zoom

LTC2604CGN#PBF Details

  • Manufacturer Part Number:

    LTC2604CGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2604CGN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2604CGN involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage regulation, it's essential to follow proper layout and decoupling techniques, use a low-ESR capacitor at the output, and ensure the input voltage is within the recommended range. Additionally, the device should be operated within its specified temperature range.
  • The maximum output current capability of the LTC2604CGN is 20mA per channel. However, the total output current should not exceed 40mA for the entire device.
  • The LTC2604CGN can be programmed for a specific output voltage using an external resistor divider network connected to the VREF pin. The output voltage can be calculated using the formula: VOUT = (R1/R2) * (1.2V + VREF).
  • The VREF pin on the LTC2604CGN is used to set the internal reference voltage, which determines the output voltage of the device. The VREF pin can be connected to an external voltage source or a resistor divider network to program the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2604CGN#PBF Overview

Use the download button to access the LTC2604CGN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
