LTC2607IDE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2607IDE#PBF - Digital to Analogue Converter, 16 bit, I2C, 2.7V to 5.5V, DFN, 12 Pins

Download LTC2607IDE#PBF Model

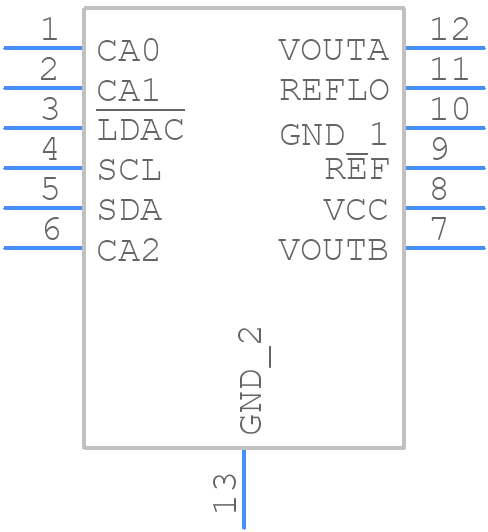

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2607IDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN
click to zoom
3D Models
LTC2607IDE#PBF - Analog Devices  - 3D model - Small Outline No-lead - 12-Lead Plastic DFN
click to zoom

LTC2607IDE#PBF Details

  • Manufacturer Part Number:

    LTC2607IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, LEAD FREE, PLASTIC, MO-229WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.096 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2607IDE#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2607IDE#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Additionally, it is recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain of the device to achieve the desired output. It is also recommended to use a high-precision voltage reference and to calibrate the device in the same environment it will be used in.
  • The LTC2607IDE#PBF has a maximum junction temperature of 150°C. To ensure safe operation, it is recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid blocking airflow around the device. Additionally, it is recommended to monitor the device's temperature and adjust the operating conditions accordingly.
  • To troubleshoot issues with the LTC2607IDE#PBF, start by verifying the input voltage and output voltage levels, and checking for any signs of oscillation or instability. Check the device's power supply and ground connections, and ensure that the device is properly calibrated. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices' technical support if necessary.
  • To ensure the LTC2607IDE#PBF meets EMC standards, it is recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or shielding on the input and output lines. Additionally, follow proper PCB layout and routing practices, and use a common-mode choke or ferrite bead to reduce emissions.
