LTC2620IGN#TRPBF - Analog Devices

Description: DAC 8-CH 12-bit 16-Pin SSOP N T/R

Download LTC2620IGN#TRPBF Model

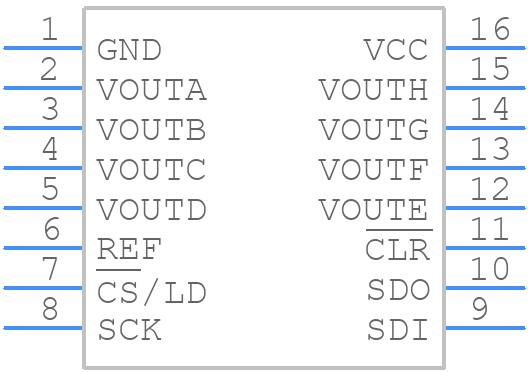

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC2620IGN#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic SSOP
click to zoom
3D Models
LTC2620IGN#TRPBF - Analog Devices  - 3D model - Small Outline Packages - 16-Lead Plastic SSOP
click to zoom

LTC2620IGN#TRPBF Details

  • Manufacturer Part Number:

    LTC2620IGN#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.8895 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.727 mm

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2620IGN#TRPBF Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC bypass and keep it close to the IC.
  • Calibration involves adjusting the internal offset and gain of the DAC. Follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly. You may also need to consider temperature calibration if your application requires high accuracy over a wide temperature range.
  • The maximum clock frequency for the LTC2620IGN is 50 MHz. However, the optimal clock frequency depends on the specific application and the desired trade-off between speed and power consumption. A higher clock frequency can improve the DAC's settling time but may also increase power consumption and noise.
  • The LTC2620IGN has a power-on reset circuit that holds the DAC in a reset state until the internal voltage regulator is stable. To ensure proper initialization, wait for the POR signal to go high before starting the DAC. You can also use an external reset signal to synchronize the DAC's initialization with other components in your system.
  • When selecting an external reference voltage, consider the voltage range, accuracy, and noise tolerance required by your application. The reference voltage should be stable and low-noise, with a voltage range that matches the DAC's input range. You may also need to consider the reference voltage's temperature coefficient and its impact on the DAC's overall accuracy.
