LTC2635HMSE-LZ12#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 12-Bit I2C Quad DAC (2.5V ref, Reset to Zero-Scale)

Download LTC2635HMSE-LZ12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

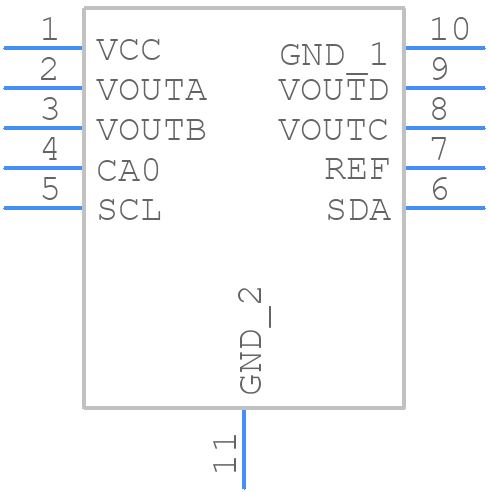

LTC2635HMSE-LZ12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2635HMSE-LZ12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom
3D Models
LTC2635HMSE-LZ12#PBF - Analog Devices - 3D model - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom

LTC2635HMSE-LZ12#PBF Details

  • Manufacturer Part Number:

    LTC2635HMSE-LZ12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4.4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2635HMSE-LZ12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2635HMSE-LZ12#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2635HMSE-LZ12#PBF requires a single 2.7V to 5.5V power supply. It is recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements involve powering the device after the input voltage has reached its nominal value, and ensuring that the input voltage is stable before enabling the device.
  • The maximum operating temperature range for the LTC2635HMSE-LZ12#PBF is -40°C to 125°C. Temperature affects the device's performance by increasing the offset voltage and decreasing the gain bandwidth product as temperature increases. It is recommended to operate the device within the specified temperature range to ensure optimal performance.
  • To troubleshoot issues with the LTC2635HMSE-LZ12#PBF, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the input and output voltage levels, and verify that the device is properly configured. Use an oscilloscope to check for oscillations and ensure that the output voltage is stable. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.
  • The LTC2635HMSE-LZ12#PBF has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD. To prevent latch-up, it is recommended to use a low-impedance power supply, avoid over-voltage conditions, and ensure that the device is properly powered down during shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2635HMSE-LZ12#PBF Overview

Use the download button to access the LTC2635HMSE-LZ12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
