LTC2636CMS-LZ10#PBF - Analog Devices

Description: Linear Technology LTC2636CMS-LZ10#PBF, 8-channel 10 bit Serial DAC, 16-Pin MSOP

Download LTC2636CMS-LZ10#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

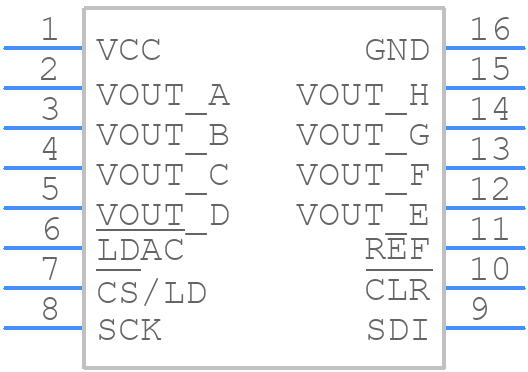

Symbol
LTC2636CMS-LZ10#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2636CMS-LZ10#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP
click to zoom
3D Models
LTC2636CMS-LZ10#PBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP
click to zoom

LTC2636CMS-LZ10#PBF Details

  • Manufacturer Part Number:

    LTC2636CMS-LZ10#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2636CMS-LZ10#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2636CMS-LZ10#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise coupling.
  • The LTC2636CMS-LZ10#PBF requires a single 2.7V to 5.5V power supply. It is recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it is recommended to power up the device after the power supply has stabilized.
  • The maximum clock frequency that can be used with the LTC2636CMS-LZ10#PBF is 50MHz. However, the device can operate at higher frequencies with reduced performance and increased power consumption.
  • The LTC2636CMS-LZ10#PBF can be configured for different output voltage ranges by adjusting the external resistors and capacitors. The device has a built-in voltage reference, and the output voltage range can be set using the VREF pin and the external resistors.
  • The LTC2636CMS-LZ10#PBF has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, it is recommended to use a heat sink or a thermal interface material to improve thermal conductivity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2636CMS-LZ10#PBF Overview

Use the download button to access the LTC2636CMS-LZ10#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
