LTC2636IMS-HZ12#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2636IMS-HZ12#PBF - DAC, 12BIT, SPI, 5.5V, MSOP-16

Download LTC2636IMS-HZ12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

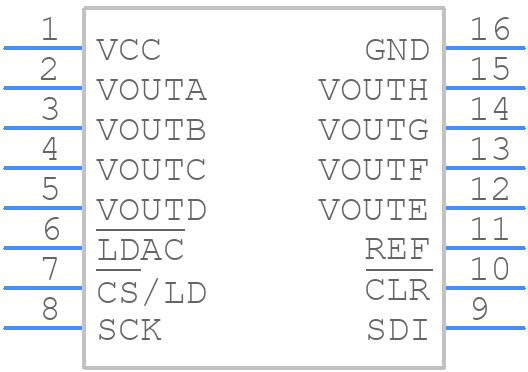

LTC2636IMS-HZ12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2636IMS-HZ12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom
3D Models
LTC2636IMS-HZ12#PBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom

LTC2636IMS-HZ12#PBF Details

  • Manufacturer Part Number:

    LTC2636IMS-HZ12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.096 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4.8 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2636IMS-HZ12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2636IMS-HZ12#PBF involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a symmetrical layout and to keep the analog and digital grounds separate.
  • To ensure the accuracy and stability of the output voltage of the LTC2636IMS-HZ12#PBF, it is recommended to use a high-quality voltage reference, to minimize noise and ripple on the input voltage, and to use a stable and low-ESR output capacitor. Additionally, it is recommended to follow the recommended layout and placement guidelines and to use a thermal relief pad under the device.
  • The maximum operating temperature range for the LTC2636IMS-HZ12#PBF is -40°C to 125°C. However, it is recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • The LTC2636IMS-HZ12#PBF can be programmed to output a specific voltage using a 3-wire serial interface. The device has a 12-bit digital-to-analog converter (DAC) that can be programmed using a serial data input (SDI), a serial clock input (SCK), and a load DAC clock input (LDAC). The output voltage can be calculated using the formula VOUT = (VREF x D) / 4096, where VREF is the reference voltage and D is the 12-bit digital code.
  • The typical settling time for the LTC2636IMS-HZ12#PBF is 10μs to 20μs, depending on the output voltage and the load capacitance. However, the settling time can be affected by various factors such as the input voltage, the output voltage, and the load current.
