LTC2636IMS-LZ12#PBF - Analog Devices

Description: DAC 8-CH 12-bit Automotive 16-Pin MSOP

Download LTC2636IMS-LZ12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

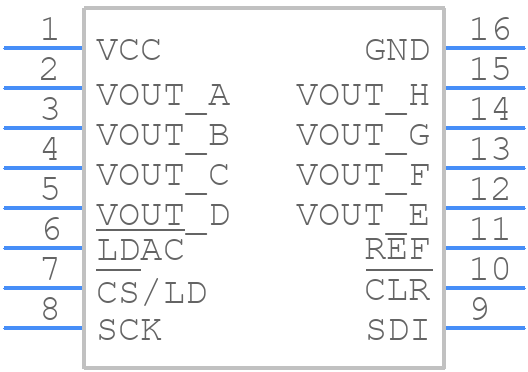

LTC2636IMS-LZ12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2636IMS-LZ12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-16_1
click to zoom
3D Models
LTC2636IMS-LZ12#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP-16_1
click to zoom

LTC2636IMS-LZ12#PBF Details

  • Manufacturer Part Number:

    LTC2636IMS-LZ12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Linearity Error-Max (EL):

    0.061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4.4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2636IMS-LZ12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2636 can be found in the application note AN136, which provides guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The output voltage range of the LTC2636 can be selected by connecting the VOUT pin to the desired output voltage tap on the internal voltage divider. The datasheet provides a table to help select the correct output voltage range based on the desired output voltage and the input voltage range.
  • The maximum output current capability of the LTC2636 is 20mA per channel. However, the output current should be derated based on the junction temperature and the ambient temperature to ensure reliable operation.
  • To ensure accurate output voltage regulation, it is recommended to use a high-precision external reference voltage, such as the ADR4520, and to follow the recommended layout and routing guidelines to minimize noise and interference.
  • The LTC2636 is rated for operation up to 125°C junction temperature. However, the device should be derated based on the ambient temperature and the desired reliability level. It is recommended to consult the datasheet and the application note AN136 for more information on high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2636IMS-LZ12#PBF Overview

Use the download button to access the LTC2636IMS-LZ12#PBF schematic symbol, PCB footprint, and 3D model.
