LTC2640CTS8-LZ10#TRMPBF - Analog Devices

Description: DAC 1-CH 10-bit 8-Pin TSOT-23 T/R

Download LTC2640CTS8-LZ10#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

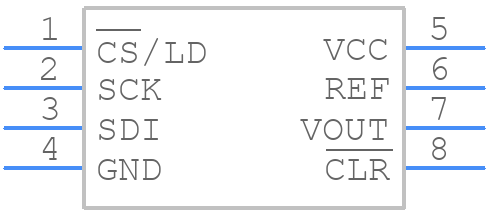

Symbol
LTC2640CTS8-LZ10#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2640CTS8-LZ10#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23 (Reference LTC DWG # 05-08-1637)
click to zoom
3D Models
LTC2640CTS8-LZ10#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23 (Reference LTC DWG # 05-08-1637)
click to zoom

LTC2640CTS8-LZ10#TRMPBF Details

  • Manufacturer Part Number:

    LTC2640CTS8-LZ10#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    3.8 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC2640CTS8-LZ10#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2640 can be found in the application note AN136, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and minimize noise.
  • The output voltage and sequencing of the LTC2640 can be configured using the VOUTx pins and the SEQ pin. The datasheet provides a table to help select the correct output voltage and sequencing for a given application. Additionally, the LTpowerCAD design tool can be used to simulate and optimize the power supply design.
  • The maximum input voltage that the LTC2640 can handle is 15V, but it is recommended to operate the device within the specified input voltage range of 2.9V to 14V to ensure reliable operation and minimize power dissipation.
  • Proper thermal management is critical for the LTC2640. The device has an exposed pad that must be connected to a thermal plane on the PCB to dissipate heat. The application note AN136 provides guidelines for thermal management, including PCB layout and thermal interface material selection.
  • The typical start-up time for the LTC2640 is around 10ms, but this can vary depending on the input voltage, output voltage, and load current. The datasheet provides more information on the start-up time and the factors that affect it.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2640CTS8-LZ10#TRMPBF Overview

Use the download button to access the LTC2640CTS8-LZ10#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
