LTC2641CMS8-12#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Single Unipolar 12-bit Unbuffered Vout DACs

Download LTC2641CMS8-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

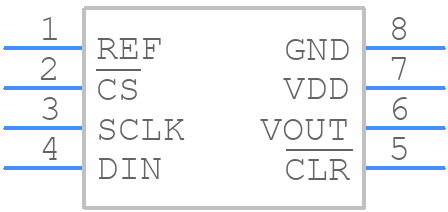

Symbol
LTC2641CMS8-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2641CMS8-12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom
3D Models
LTC2641CMS8-12#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom

LTC2641CMS8-12#PBF Details

  • Manufacturer Part Number:

    LTC2641CMS8-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2641CMS8-12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2641CMS8-12#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2641CMS8-12#PBF requires a single 2.7V to 5.5V power supply. It is recommended to power the device with a clean and regulated power supply, and to ensure that the power supply is stable and free of noise. The power sequencing requirements involve powering the device in the following order: VCC, then VIN, and finally the input voltage.
  • The LTC2641CMS8-12#PBF has a maximum junction temperature of 125°C. To ensure proper heat dissipation, it is recommended to use a thermal pad or a heat sink, and to ensure good airflow around the device. Additionally, it is recommended to keep the device away from other heat-generating components and to use a thermal interface material to improve heat transfer.
  • To troubleshoot common issues with the LTC2641CMS8-12#PBF, it is recommended to check the power supply and input voltage for noise and stability, ensure that the device is properly grounded, and check for any layout or routing issues. Additionally, it is recommended to use a scope or other measurement tool to observe the device's behavior and identify the root cause of the issue.
  • The LTC2641CMS8-12#PBF is designed to meet the EMI and EMC requirements of various regulatory bodies, including the FCC and CE. To ensure compliance, it is recommended to follow proper PCB layout and design practices, use shielding and filtering as necessary, and ensure that the device is properly grounded and decoupled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2641CMS8-12#PBF Overview

Use the download button to access the LTC2641CMS8-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
