LTC2642ACMS-16#PBF - Analog Devices

Description: Digital to Analog Converters - DAC Single Bipolar 16-bit Unbuffered Vout DACs

Download LTC2642ACMS-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

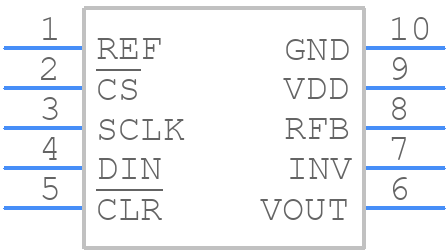

LTC2642ACMS-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2642ACMS-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS10-Lead Plastic MSOP
click to zoom
3D Models
LTC2642ACMS-16#PBF - Analog Devices - 3D model - Small Outline Packages - MS10-Lead Plastic MSOP
click to zoom

LTC2642ACMS-16#PBF Details

  • Manufacturer Part Number:

    LTC2642ACMS-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2642ACMS-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2642ACMS-16#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2642ACMS-16#PBF requires a single 3.3V or 5V power supply, and it is recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the input voltage, and then the output voltage.
  • The LTC2642ACMS-16#PBF has a maximum junction temperature of 125°C, and it is recommended to ensure the device operates within a temperature range of -40°C to 85°C. Thermal considerations involve using a heat sink or a thermal pad to dissipate heat, and ensuring good airflow around the device.
  • To troubleshoot common issues with the LTC2642ACMS-16#PBF, it is recommended to check the input voltage, output voltage, and feedback loop connections. Ensure that the device is properly powered, and the output voltage is within the recommended range. Check for oscillations by monitoring the output voltage with an oscilloscope, and adjust the feedback loop components as needed.
  • The LTC2642ACMS-16#PBF is designed to meet EMI and EMC regulatory standards, but it is recommended to take additional precautions to ensure compliance. This includes using a shielded enclosure, minimizing loop areas, and using EMI filters or common-mode chokes to reduce emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2642ACMS-16#PBF Overview

Use the download button to access the LTC2642ACMS-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
