LTC2642CMS-12#PBF - Analog Devices

Description: IC DAC 12BIT VOUT 10-MSOP

Download LTC2642CMS-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

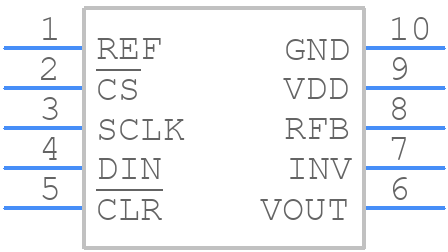

Symbol
LTC2642CMS-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2642CMS-12#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 MSOP
click to zoom
3D Models
LTC2642CMS-12#PBF - Analog Devices - 3D model - Small Outline Packages - 10 MSOP
click to zoom

LTC2642CMS-12#PBF Details

  • Manufacturer Part Number:

    LTC2642CMS-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2642CMS-12#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2642CMS-12#PBF involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The LTC2642CMS-12#PBF requires a single 3.3V or 5V power supply, and it is recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. The power sequencing requirements involve powering up the device in the following order: VCC, followed by the input voltage (VIN), and then the output voltage (VOUT).
  • The LTC2642CMS-12#PBF has a maximum junction temperature of 125°C, and it is recommended to keep the device temperature below 85°C for optimal performance. To ensure the device does not overheat, it is recommended to use a heat sink, ensure good airflow, and avoid blocking the airflow around the device.
  • To troubleshoot issues with the LTC2642CMS-12#PBF, it is recommended to check the power supply voltage, input voltage, and output voltage using an oscilloscope or a multimeter. Common pitfalls to avoid include incorrect power sequencing, inadequate decoupling, and poor PCB layout, which can lead to noise, oscillations, and reduced performance.
  • The LTC2642CMS-12#PBF is designed to meet the electromagnetic compatibility (EMC) requirements of various regulatory bodies, including the European Union's EMC Directive and the US Federal Communications Commission (FCC) regulations. To ensure compliance, it is recommended to follow proper PCB layout and design practices, use shielding and filtering, and perform EMI and EMC testing to ensure compliance with regulatory requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2642CMS-12#PBF Overview

Use the download button to access the LTC2642CMS-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
