LTC2662HUH-16#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 5 Chnl 16/12 bit current source DAC

Download LTC2662HUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

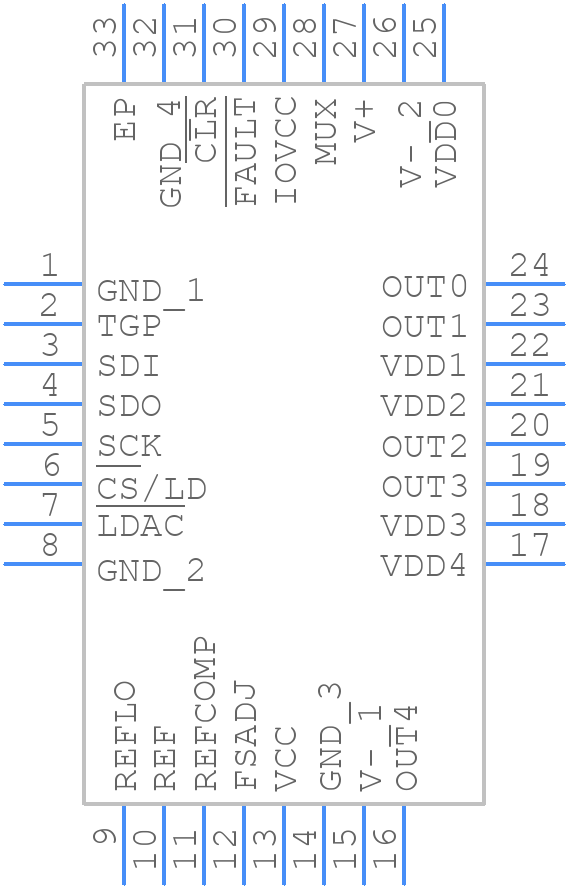

Symbol
LTC2662HUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2662HUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LTC2662HUH-16#PBF
click to zoom
3D Models
LTC2662HUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LTC2662HUH-16#PBF
click to zoom

LTC2662HUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2662HUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    8700 µs

  • Supply Current-Max:

    1035 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC2662HUH-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2662HUH-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer, and to keep the analog and digital signals separate.
  • The LTC2662HUH-16#PBF requires a single 3.3V or 5V power supply, and it's recommended to use a low-noise, low-dropout regulator. The power sequencing requirements involve powering up the device in the following order: VCC, AVCC, and then the digital supply. It's also recommended to use a soft-start circuit to limit the inrush current.
  • The LTC2662HUH-16#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance. To ensure proper heat dissipation, use a thermal pad or a heat sink, and ensure good airflow around the device. It's also recommended to use a thermal interface material to improve heat transfer.
  • The LTC2662HUH-16#PBF requires configuration of the output voltage, output current, and switching frequency. The device also has several pins that require configuration, such as the SYNC pin, the MODE pin, and the CLK pin. It's recommended to consult the datasheet and application notes for specific configuration guidelines.
  • The LTC2662HUH-16#PBF is designed to meet EMI and EMC regulatory requirements, but it's still important to follow good design practices to minimize EMI. Use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use EMI filters and shielding to minimize radiation. It's also recommended to consult the datasheet and application notes for specific EMI and EMC guidelines.
