LTC2662IUH-16#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit 5-Channel 300mA Current Source DAC

Download LTC2662IUH-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

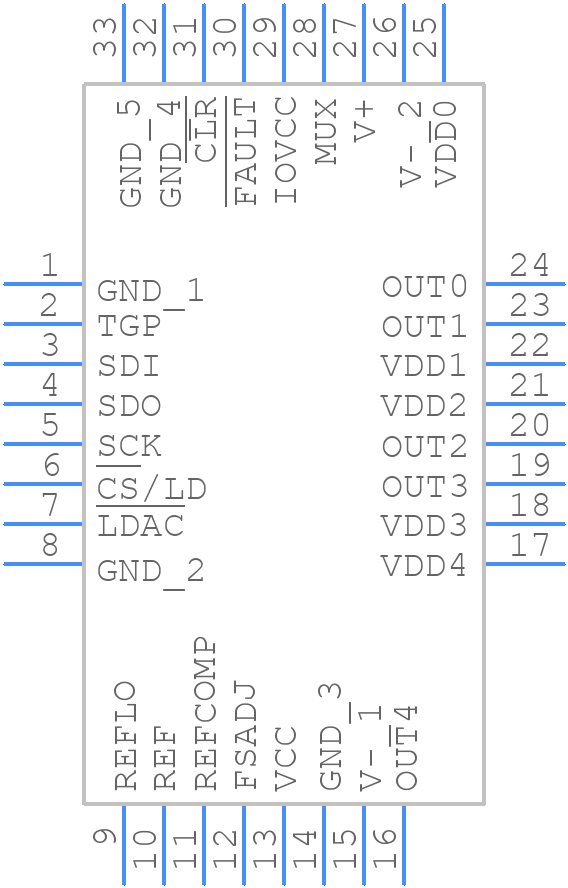

Symbol
LTC2662IUH-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2662IUH-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)_2024
click to zoom
3D Models
LTC2662IUH-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)_2024
click to zoom

LTC2662IUH-16#PBF Details

  • Manufacturer Part Number:

    LTC2662IUH-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    -5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    8700 µs

  • Supply Current-Max:

    1035 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC2662IUH-16#PBF Frequently Asked Questions (FAQs)

  • The datasheet provides some guidelines, but it's recommended to follow Analog Devices' application note AN136 for detailed layout and placement recommendations to minimize noise and ensure optimal performance.
  • The output filter components should be chosen based on the desired output voltage ripple, output current, and switching frequency. A good starting point is to use the recommended component values in the datasheet, and then adjust them based on the specific application requirements.
  • The maximum ambient temperature range for the LTC2662IUH-16#PBF is -40°C to 125°C. The device's performance may degrade at higher temperatures, and the output voltage may droop. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
  • The LTC2662IUH-16#PBF has a SYNC pin that can be used to synchronize the switching frequency of multiple devices. Connect the SYNC pins of each device together, and ensure that the devices are properly phased to avoid beat frequencies.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin to minimize noise and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2662IUH-16#PBF Overview

Use the download button to access the LTC2662IUH-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
