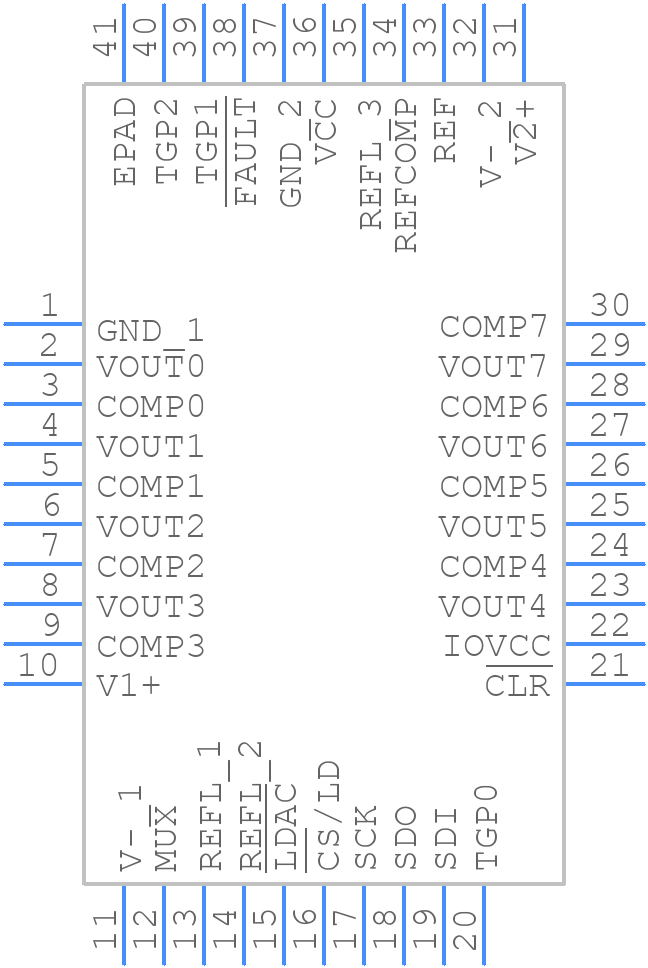

LTC2686CUJ-16#TRPBF - Analog Devices

LTC2686CUJ-16#TRPBF Details

• Manufacturer Part Number:

  LTC2686CUJ-16#TRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-40

• Pin Count:

  40

• Manufacturer Package Code:

  05-08-1728

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog Output Voltage-Max:

  15 V

• Analog Output Voltage-Min:

  -15 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  2'S COMPLEMENT BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-XQCC-N40

• Length:

  6 mm

• Linearity Error-Max (EL):

  0.004577%

• Moisture Sensitivity Level:

  1

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC40,.24SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Settling Time-Nom (tstl):

  36 µs

• Supply Current-Max:

  22 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6 mm
