LTC2686HUJ-16#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 8 Ch +/-15V SoftSpan DACs

Download LTC2686HUJ-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

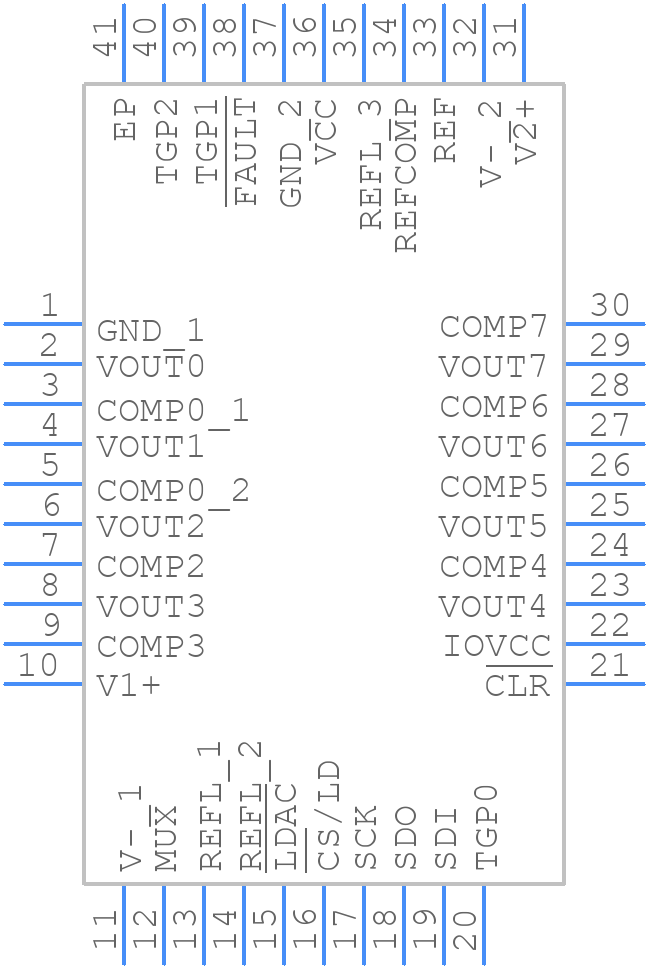

Symbol
LTC2686HUJ-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2686HUJ-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.75 mm Package Height 05-08-1728
click to zoom
3D Models
LTC2686HUJ-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.75 mm Package Height 05-08-1728
click to zoom

LTC2686HUJ-16#PBF Details

  • Manufacturer Part Number:

    LTC2686HUJ-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    15 V

  • Analog Output Voltage-Min:

    -15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.004577%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    36 µs

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2686HUJ-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC2686HUJ-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a star-ground configuration and to avoid routing digital signals near the analog signals.
  • To ensure the accuracy and stability of the voltage reference output, it's recommended to use a high-quality external capacitor with low equivalent series resistance (ESR) and to keep the capacitor close to the VREF pin. Additionally, the voltage reference output should be decoupled from the power supply noise using a low-pass filter.
  • The maximum allowed voltage on the input pins of the LTC2686HUJ-16#PBF is 6V. To protect the device from overvoltage conditions, it's recommended to use voltage clamping diodes or transient voltage suppressors (TVS) on the input pins, and to ensure that the input voltage does not exceed the maximum rating.
  • The LTC2686HUJ-16#PBF can be programmed using a 3-wire serial interface (SCL, SDA, and INT). The output voltage and current can be set using the internal DAC and the programming interface. The device can be programmed using a microcontroller or a dedicated programming tool.
  • The thermal management strategy for the LTC2686HUJ-16#PBF involves using a heat sink or a thermal pad to dissipate heat away from the device. The device should be operated within the recommended temperature range of -40°C to 125°C, and the thermal design should ensure that the junction temperature does not exceed 150°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2686HUJ-16#PBF Overview

Use the download button to access the LTC2686HUJ-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC26, or try a keyword search, such as Digital to Analog Converters
