LTC2686IUJ-16#PBF - Analog Devices

Description: 8-Channel, 12-/16-Bit Voltage Output SoftSpan DAC

Download LTC2686IUJ-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

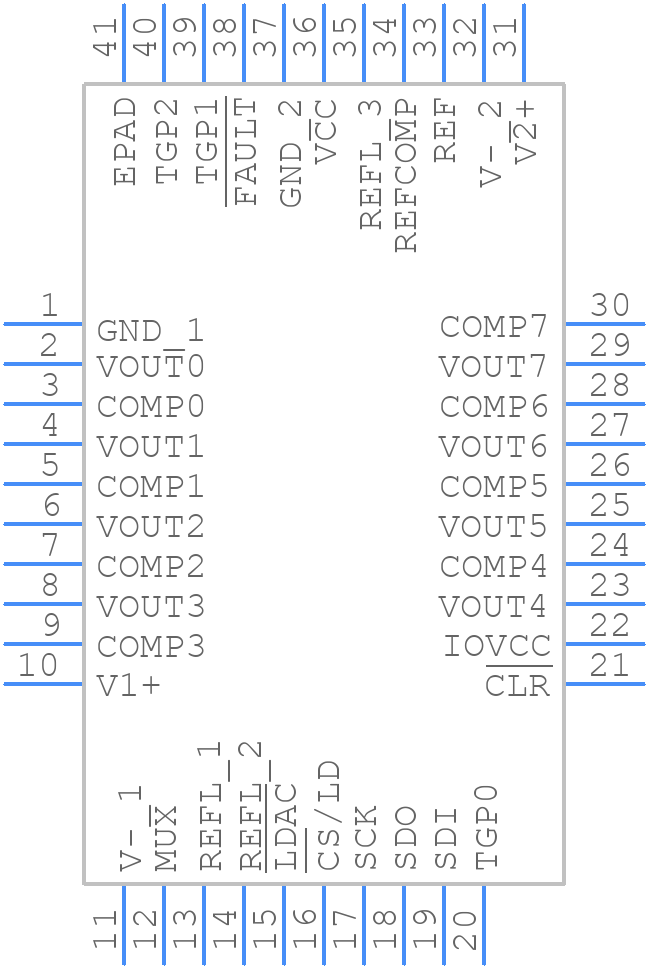

Symbol
LTC2686IUJ-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2686IUJ-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.75 mm Package Height 05-08-1728
click to zoom
3D Models
LTC2686IUJ-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.75 mm Package Height 05-08-1728
click to zoom

LTC2686IUJ-16#PBF Details

  • Manufacturer Part Number:

    LTC2686IUJ-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    15 V

  • Analog Output Voltage-Min:

    -15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.004577%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    36 µs

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2686IUJ-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2686IUJ-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces short and away from noise sources.
  • To ensure accuracy and linearity over the entire operating temperature range, it's recommended to use a high-accuracy voltage reference, such as the LTC6655, and to calibrate the device at multiple temperatures. Additionally, using a thermistor or temperature sensor to monitor the device temperature and compensate for temperature-related errors can also help to improve accuracy and linearity.
  • The maximum allowable input voltage range for the LTC2686IUJ-16#PBF is 5.5V, and exceeding this range can cause the device to malfunction or be damaged. The input voltage range affects the device's performance by influencing the accuracy, linearity, and noise performance of the ADC. Operating the device within the recommended input voltage range ensures optimal performance and accuracy.
  • To prevent damage from electrostatic discharge (ESD), it's recommended to handle the LTC2686IUJ-16#PBF with anti-static wrist straps, mats, or bags, and to store the device in a conductive foam or anti-static packaging. Additionally, it's recommended to follow proper ESD handling and storage procedures, such as grounding oneself before handling the device, and avoiding touching the device's pins or leads.
  • The recommended power-up sequence for the LTC2686IUJ-16#PBF is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD). The recommended power-down sequence is to remove the digital supply voltage (VDD) before the analog supply voltage (VCC). Following this sequence helps to prevent damage or malfunction due to voltage sequencing issues.
