LTC2688IUJ-16#PBF - Analog Devices

Description: 16-Channel, 12-/16-Bit Voltage Output SoftSpan DAC

Download LTC2688IUJ-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

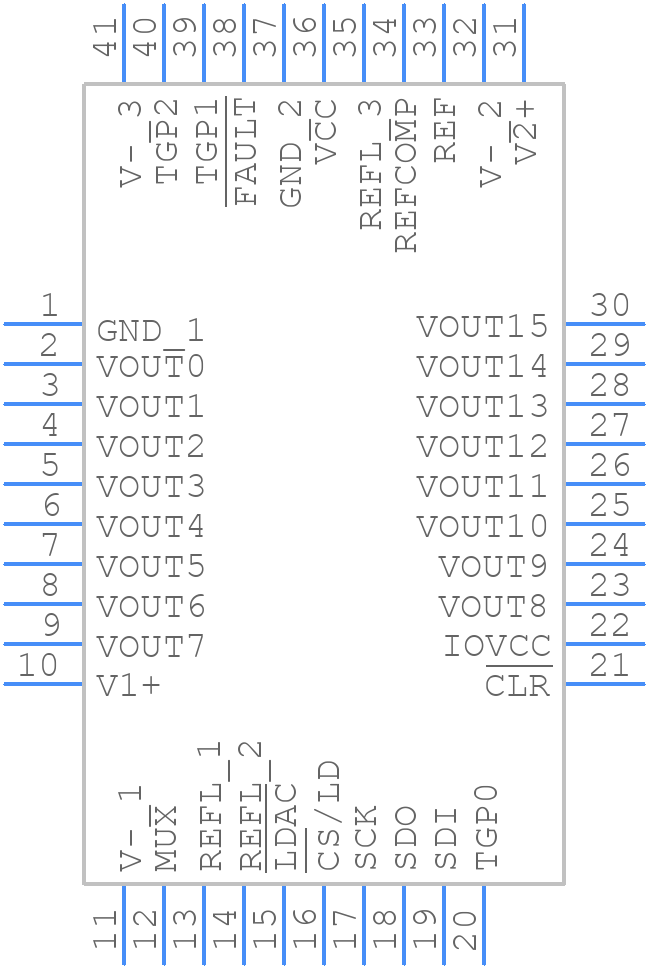

Symbol
LTC2688IUJ-16#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2688IUJ-16#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE(H=0.8mm)
click to zoom
3D Models
LTC2688IUJ-16#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE(H=0.8mm)
click to zoom

LTC2688IUJ-16#PBF Details

  • Manufacturer Part Number:

    LTC2688IUJ-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    05-08-1728

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    15 V

  • Analog Output Voltage-Min:

    -15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XBCS-N40

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0000457%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWBCS

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    28 µs

  • Settling Time-Nom (tstl):

    28 µs

  • Supply Current-Max:

    37 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LTC2688IUJ-16#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC2688IUJ-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane to minimize noise and crosstalk.
  • To ensure accurate temperature measurement with the LTC2688IUJ-16#PBF, it's essential to follow proper PCB layout and thermal management practices. This includes keeping the device away from heat sources, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, calibration and compensation techniques can be used to improve temperature measurement accuracy.
  • The maximum allowed voltage on the analog input pins of the LTC2688IUJ-16#PBF is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the specified range to prevent damage and ensure accurate measurements.
  • The digital output data from the LTC2688IUJ-16#PBF is typically in a 16-bit or 18-bit format, depending on the configuration. The data can be handled in a microcontroller or FPGA by using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) protocol. The device's datasheet provides detailed information on the digital output format and communication protocols.
  • The power consumption of the LTC2688IUJ-16#PBF depends on the operating mode and frequency. In normal operation, the device consumes around 10mA to 15mA. To minimize power consumption, it's recommended to use the device's power-down mode, reduce the sampling frequency, and use a low-power microcontroller or FPGA.
