LTC2704CGW-16PBF - Analog Devices

Description: 1Six Programmable Output Ranges: Unipolar: 0V to 5V, 0V to 10V Bipolar: ±5V, ±10V, ±2.5V, –2.5V to 7.5V n Serial Readback of All On-Chip Registers n 1LSB INL and DNL Over the Industrial Temperature Range (LTC2704-14/LTC2704-12) n Force/Sense Outputs Enable Remote Sensing n Glitch Impulse: < 2nV-sec n Outputs Drive ±5mA n Pin Compatible 12-, 14- and 16-Bit Parts n Power-On and Clear to Zero Volts n 44-Lead SSOP Package

Download LTC2704CGW-16PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

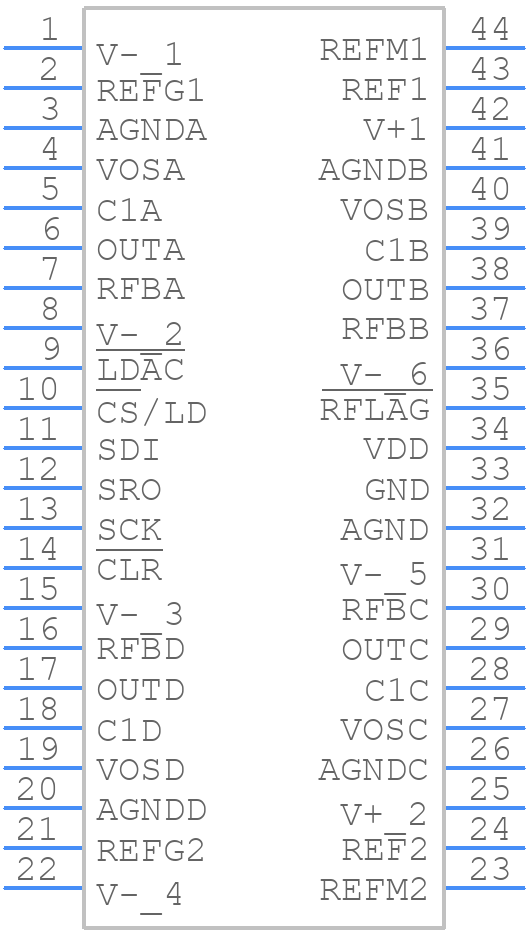

LTC2704CGW-16PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

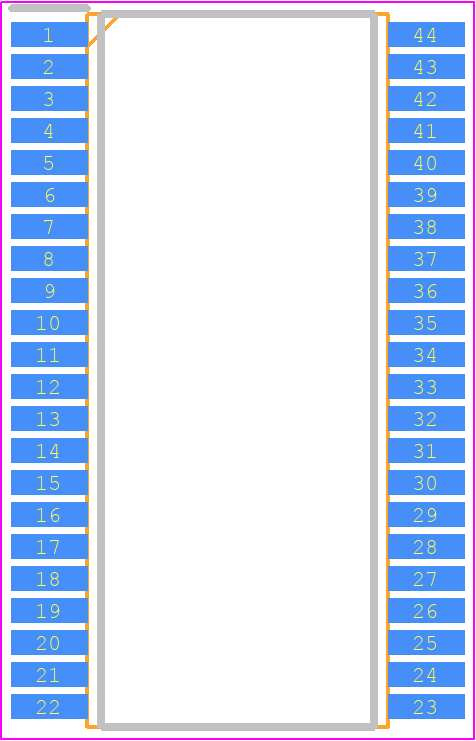

LTC2704CGW-16PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide .300 Inch) (Reference LTC DWG # 05-08-1642)
click to zoom
3D Models
LTC2704CGW-16PBF - Analog Devices - 3D model - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide .300 Inch) (Reference LTC DWG # 05-08-1642)
click to zoom

LTC2704CGW-16PBF Details

  • Manufacturer Part Number:

    LTC2704CGW-16PBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC2704CGW-16PBF Overview

Use the download button to access the LTC2704CGW-16PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters
