LTC2704IGW-16#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2704IGW-16#PBF - Digital to Analogue Converter, Quad, 16 bit, 3 Wire, Serial, SPI, 4.5V to 16.5V, SSOP, 44 Pins

Download LTC2704IGW-16#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

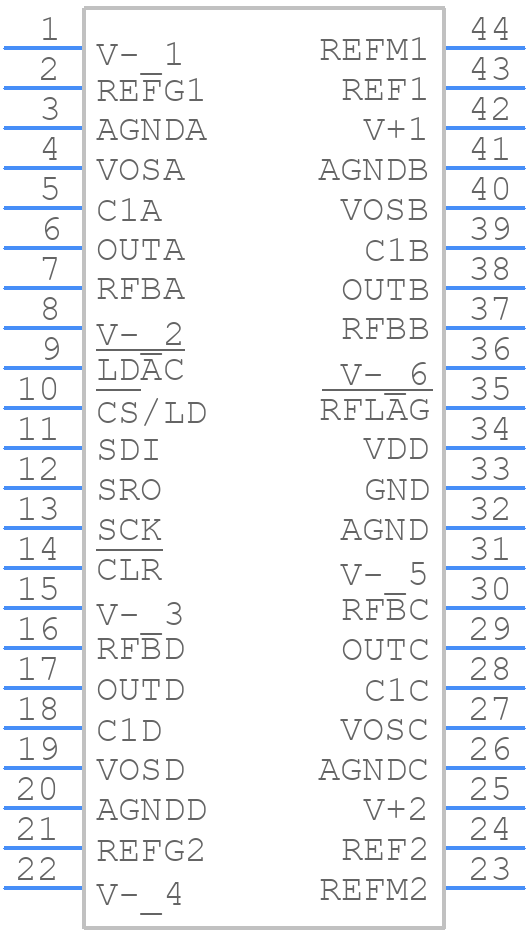

Symbol
LTC2704IGW-16#PBF - Analog Devices - PCB symbol
click to zoom

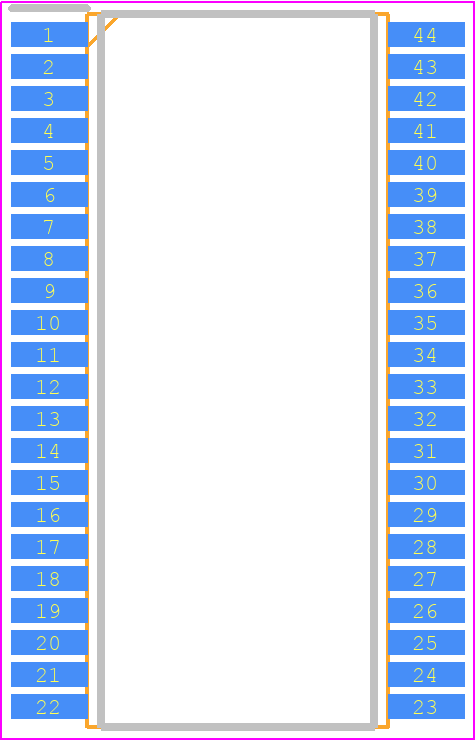

PCB Footprints
LTC2704IGW-16#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide .300 Inch)
click to zoom
3D Models
LTC2704IGW-16#PBF - Analog Devices - 3D model - Small Outline Packages - GW Package 44-Lead Plastic SSOP (Wide .300 Inch)
click to zoom

LTC2704IGW-16#PBF Details

  • Manufacturer Part Number:

    LTC2704IGW-16#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1642 (GW44)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    17.83 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP44,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.64 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC2704IGW-16#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2704IGW-16#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC2704IGW-16#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the power supply has reached its nominal voltage.
  • The LTC2704IGW-16#PBF can support clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The LTC2704IGW-16#PBF can be configured for different voltage ranges by adjusting the external resistors and capacitors. The device can support voltage ranges from 0 to 16.5V. However, the maximum voltage range may be limited by the external components and the specific application requirements.
  • The LTC2704IGW-16#PBF has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. It's recommended to use a thermal interface material and a heat sink if the device is expected to operate at high temperatures or high currents.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2704IGW-16#PBF Overview

Use the download button to access the LTC2704IGW-16#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters
