LTC2751CUHF-12#PBF - Analog Devices

Description: Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O

Download LTC2751CUHF-12#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

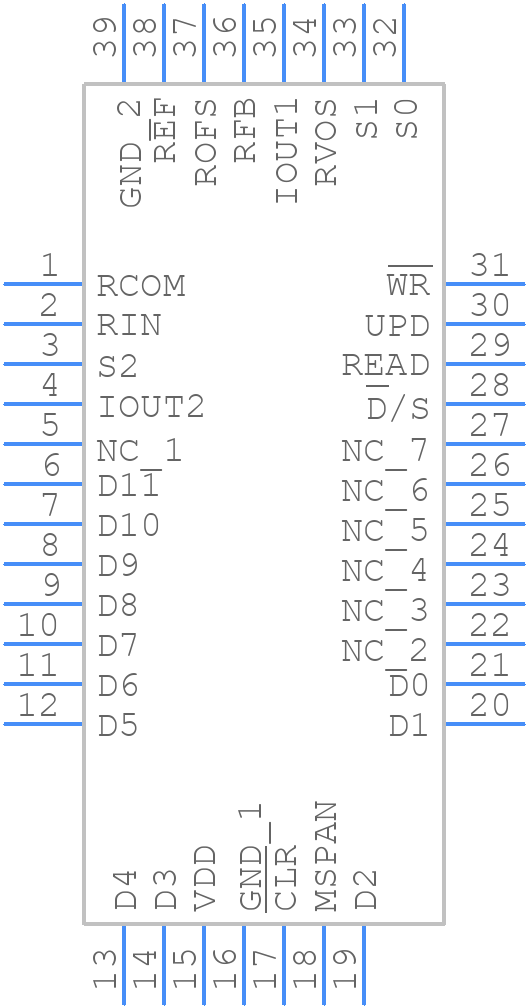

LTC2751CUHF-12#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2751CUHF-12#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP
click to zoom
3D Models
LTC2751CUHF-12#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP
click to zoom

LTC2751CUHF-12#PBF Details

  • Manufacturer Part Number:

    LTC2751CUHF-12#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    2 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC2751CUHF-12#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2751CUHF-12 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper power-up and power-down of the LTC2751CUHF-12, it's recommended to follow a specific power-up sequence. First, apply the analog supply voltage (VCC) followed by the digital supply voltage (VDD). During power-down, reverse the sequence. Additionally, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The LTC2751CUHF-12 can drive a maximum capacitive load of 100pF. Exceeding this limit may cause the device to oscillate or become unstable. If a larger capacitive load is required, an external buffer or amplifier may be necessary.
  • To troubleshoot issues with the LTC2751CUHF-12, start by verifying the power supply voltages and ensuring that the device is properly powered up and powered down. Check the input and output voltages using an oscilloscope to identify any anomalies. Also, review the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
  • The LTC2751CUHF-12 is rated for operation up to 125°C. However, the device's performance and accuracy may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments and to ensure that the device is properly derated for temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2751CUHF-12#PBF Overview

Use the download button to access the LTC2751CUHF-12#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters
