LTC2757ACLX#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 18-Bit Parallel Iout DAC with Softspan (1LSB INL)

Download LTC2757ACLX#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

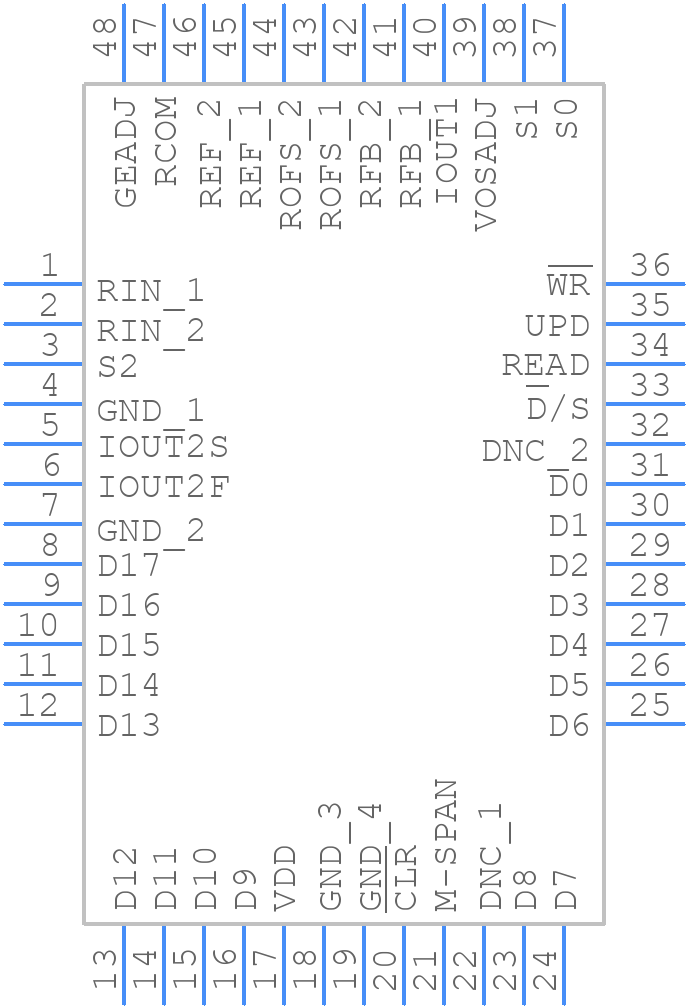

LTC2757ACLX#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2757ACLX#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead 7mm × 7mm Plastic LQFP
click to zoom
3D Models
LTC2757ACLX#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-Lead 7mm × 7mm Plastic LQFP
click to zoom

LTC2757ACLX#PBF Details

  • Manufacturer Part Number:

    LTC2757ACLX#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, LEAD FREE, PLASTIC, MS-026, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Settling Time-Nom (tstl):

    2.1 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC2757ACLX#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2757ACLX#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the bypass capacitors. Additionally, it's recommended to use a Kelvin connection for the sense lines and to keep the high-frequency signals away from the sensitive analog nodes.
  • To ensure the accuracy of the DAC output voltage, it's essential to use a high-accuracy voltage reference, such as the LTC6655, and to follow proper layout and routing guidelines. Additionally, the output voltage should be buffered with an op-amp, such as the OP1177, to minimize loading effects.
  • The maximum clock frequency that can be used with the LTC2757ACLX#PBF is 50MHz. However, it's recommended to use a clock frequency of 20MHz or less to ensure reliable operation and to minimize the effects of clock jitter.
  • Yes, the LTC2757ACLX#PBF can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be daisy-chained, making it suitable for multi-channel applications. However, it's essential to ensure that the clock and data lines are properly buffered and terminated to minimize signal degradation.
  • The POR and BOR functions of the LTC2757ACLX#PBF can be handled by using an external reset controller, such as the LTC2914, or by using a simple RC network to generate a power-on reset signal. It's essential to ensure that the reset signal is properly debounced and synchronized with the clock signal to prevent spurious resets.
