LTC2758AILX#PBF - Analog Devices

Description: Digital to Analog Converters - DAC 18-Bit Dual SoftSpan Iout DAC with Serial I/O (1LSB INL)

Download LTC2758AILX#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

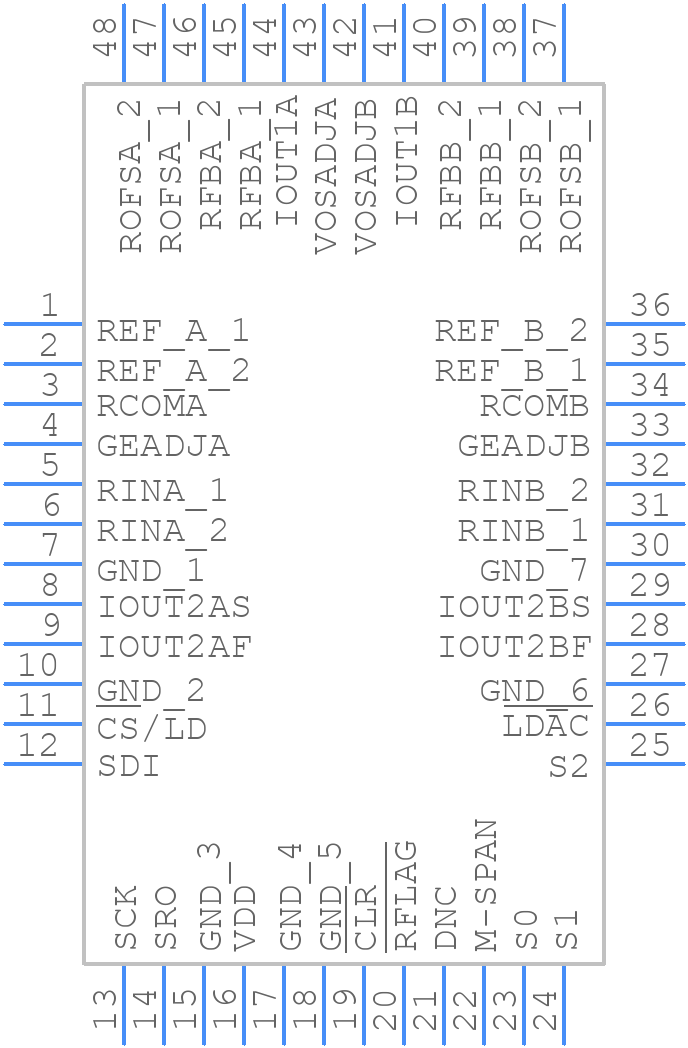

Symbol
LTC2758AILX#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2758AILX#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LEAD QUAD FLATPACK
click to zoom
3D Models
LTC2758AILX#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-LEAD QUAD FLATPACK
click to zoom

LTC2758AILX#PBF Details

  • Manufacturer Part Number:

    LTC2758AILX#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, LEAD FREE, PLASTIC, MS-026, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Settling Time-Nom (tstl):

    2.1 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC2758AILX#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2758AILX#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The LTC2758AILX#PBF requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the analog and digital power supplies are powered up simultaneously.
  • The LTC2758AILX#PBF can support clock frequencies up to 100 MHz, but the maximum frequency may vary depending on the specific application and the quality of the clock signal.
  • The LTC2758AILX#PBF can be configured for different output voltage ranges by adjusting the external resistors and capacitors. The datasheet provides a table with recommended values for different output voltage ranges. Additionally, the device can be programmed using the SPI interface to set the output voltage and other parameters.
  • The LTC2758AILX#PBF has a thermal pad that must be connected to a solid ground plane to ensure good heat dissipation. The device can operate at a junction temperature up to 125°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2758AILX#PBF Overview

Use the download button to access the LTC2758AILX#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC27, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
