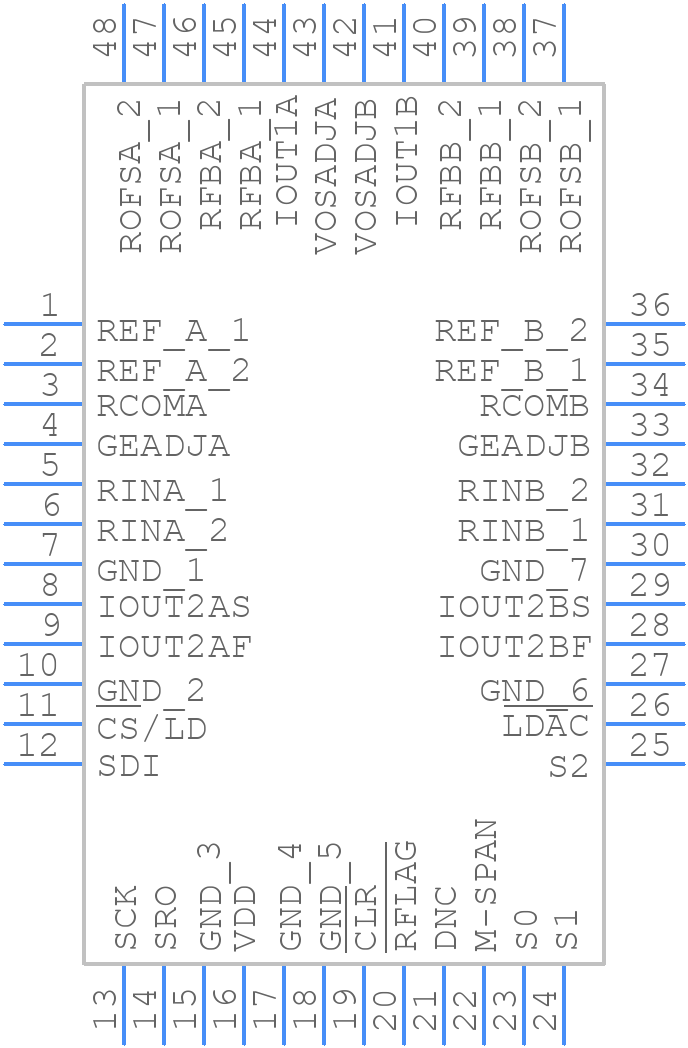

LTC2758BILX#PBF - Analog Devices

LTC2758BILX#PBF Details

• Manufacturer Part Number:

  LTC2758BILX#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  7 X 7 MM, LEAD FREE, PLASTIC, MS-026, LQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  05-08-1760

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Output Voltage-Max:

  10 V

• Analog Output Voltage-Min:

  -10 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Linearity Error-Max (EL):

  0.0008%

• Moisture Sensitivity Level:

  3

• Number of Bits:

  18

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.6 mm

• Settling Time-Nom (tstl):

  2.1 µs

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
