LTC2874IUHF#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC2874IUHF#PBF - IO-Link Master, Hot Swap Controller & PHY, 8 V to 30 V in, QFN-38

Download LTC2874IUHF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

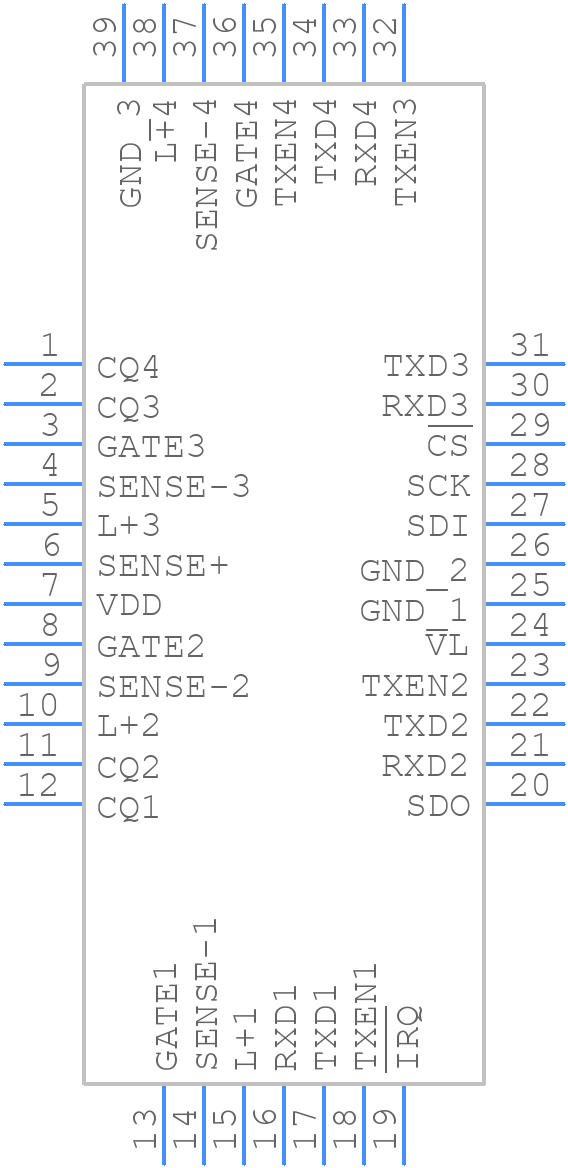

Symbol
LTC2874IUHF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2874IUHF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UHF (38-Lead QFN)
click to zoom
3D Models
LTC2874IUHF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UHF (38-Lead QFN)
click to zoom

LTC2874IUHF#PBF Details

  • Manufacturer Part Number:

    LTC2874IUHF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1701

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    SEATED HT-CALCULATED

  • Interface IC Type:

    IO-LINK TRANSCEIVER

  • Interface Standard:

    SPI

  • JESD-30 Code:

    R-PQCC-N38

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC38,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    IEC 61000-4-5

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LTC2874IUHF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, wide traces for power and ground connections.
  • Use a shielded cable, keep the USB traces short and away from noise sources, and ensure that the USB connector is properly terminated. Also, use a common mode filter or ferrite bead to reduce EMI.
  • The maximum cable length supported is 3 meters, but it can be extended up to 5 meters using active repeaters or hubs. However, signal integrity and data rate may be affected at longer cable lengths.
  • Power up the VCC and AVCC pins simultaneously, followed by the USB_DP and USB_DM pins. Ensure that the reset pin is held low for at least 10ms during power-up to ensure proper initialization.
  • The device has a thermal pad that must be connected to a solid ground plane for heat dissipation. Ensure good airflow around the device and avoid blocking the thermal pad with components or soldermask.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2874IUHF#PBF Overview

Use the download button to access the LTC2874IUHF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC28, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
