LTC2875IDD#TRPBF - Analog Devices

Description: CAN Interface IC 60V Fault Protected 3.3V or 5V 25kV ESD High Speed CAN FD Transceiver

Download LTC2875IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

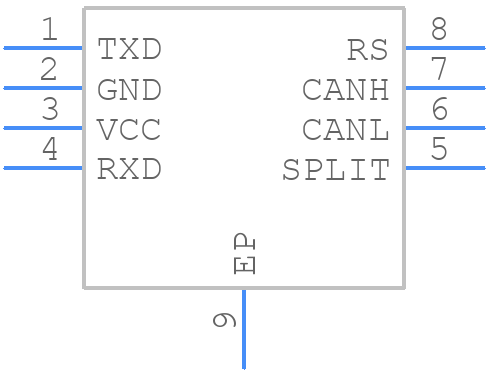

LTC2875IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2875IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom
3D Models
LTC2875IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C)
click to zoom

LTC2875IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC2875IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2875IDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2875IDD involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable communication with the LTC2875IDD, use a reliable clock source, ensure proper termination of the bus, and use a common mode filter to reduce noise. Also, ensure that the device is properly powered and the voltage supply is clean.
  • The maximum cable length for the LTC2875IDD depends on the specific application and the type of cable used. However, as a general rule, the cable length should be kept as short as possible to minimize signal degradation and noise. A maximum cable length of 1-2 meters is recommended.
  • To troubleshoot issues with the LTC2875IDD, start by checking the power supply and ensuring that the device is properly powered. Then, check the clock source and ensure that it is reliable. Use an oscilloscope to check the signal integrity and look for signs of noise or signal degradation. Finally, check the PCB layout and ensure that it is correct.
  • The thermal management strategy for the LTC2875IDD involves using a heat sink or a thermal pad to dissipate heat. The device should be mounted on a PCB with a solid ground plane to help dissipate heat. Additionally, ensure good airflow around the device to prevent overheating.
