LTC2875IS8#TRPBF - Analog Devices

Description: CAN Interface IC 60V Fault Protected 3.3V or 5V 25kV ESD High Speed CAN FD Transceiver

Download LTC2875IS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

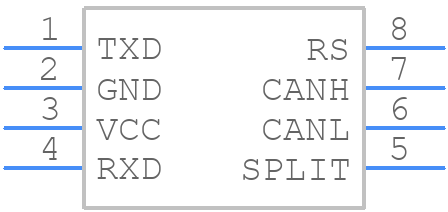

LTC2875IS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2875IS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LTC2875IS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LTC2875IS8#TRPBF Details

  • Manufacturer Part Number:

    LTC2875IS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.752 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC2875IS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2875IS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable communication, use a common mode choke or a ferrite bead to filter the differential signals, and keep the signal traces short and well-matched. Also, use a termination resistor at the receiving end to match the impedance of the transmission line.
  • The maximum cable length supported by the LTC2875IS8 depends on the data rate and the type of cable used. As a general guideline, the maximum cable length is approximately 10 meters at 100 Mbps and 5 meters at 1 Gbps.
  • To minimize EMI and RFI, use a shielded cable, keep the signal traces away from noise sources, and use a common mode choke or ferrite bead to filter the differential signals. Also, ensure that the PCB layout is well-grounded and use a metal enclosure to shield the device.
  • The recommended power-up sequence for the LTC2875IS8 is to power up the VCC supply first, followed by the VDD supply. This ensures that the internal voltage regulators are powered up correctly.
