LTC2919HMS-5#PBF - Analog Devices

Description: IC SUPERVISOR 3 CHANNEL 10MSOP

Download LTC2919HMS-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

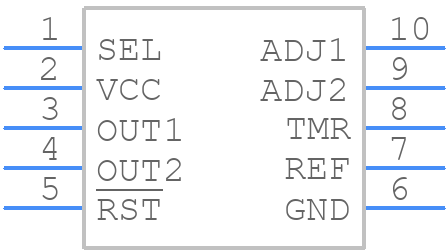

Symbol
LTC2919HMS-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2919HMS-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP-ren2
click to zoom
3D Models
LTC2919HMS-5#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP-ren2
click to zoom

LTC2919HMS-5#PBF Details

  • Manufacturer Part Number:

    LTC2919HMS-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BIPOLAR UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.28 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    0.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC2919HMS-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2919HMS-5#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure the accuracy of the voltage monitoring function, it's essential to use a high-precision voltage reference, such as the internal 1.2V reference of the LTC2919HMS-5#PBF. Additionally, the input voltage range should be within the specified range of 0V to 5.5V, and the input impedance should be high enough to prevent loading effects.
  • The recommended power-up sequence for the LTC2919HMS-5#PBF is to first apply the power supply voltage (VCC) and then the input voltage (VIN). This ensures that the internal voltage regulators and voltage references are properly initialized, preventing latch-up or other issues.
  • To handle thermal management, it's essential to provide adequate heat sinking and airflow around the device. The LTC2919HMS-5#PBF has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal plane on the PCB. Additionally, the device should be operated within the specified temperature range of -40°C to 125°C.
  • The LTC2919HMS-5#PBF has built-in ESD protection, but it's still essential to take precautions during handling and assembly to prevent damage from electrostatic discharge. This includes using ESD-safe materials, grounding wrist straps, and using anti-static packaging and storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2919HMS-5#PBF Overview

Use the download button to access the LTC2919HMS-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
