LTC2956IUD-2#PBF - Analog Devices

Description: Supervisory Circuits Wake-Up Timer w/ Pushbutton Control

Download LTC2956IUD-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

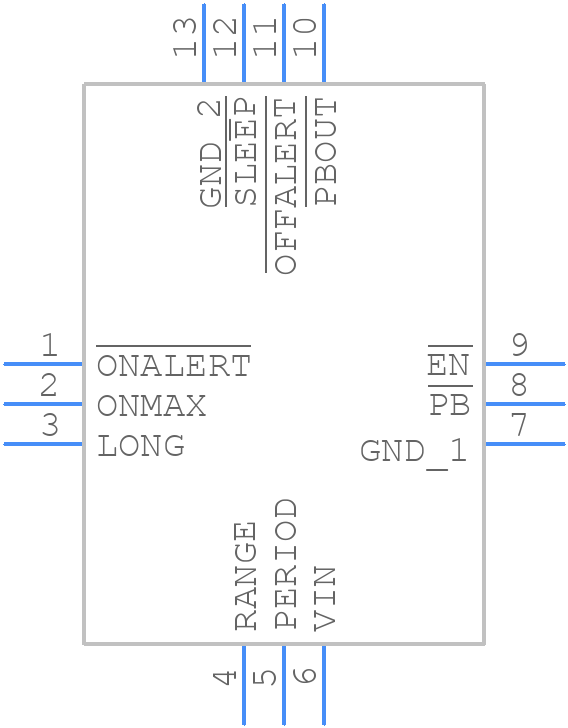

LTC2956IUD-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2956IUD-2#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC2956IUD-2#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 12-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC2956IUD-2#PBF Details

  • Manufacturer Part Number:

    LTC2956IUD-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    12

  • Number of Timers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    1.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Volatile:

    NO

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE
