Part Image

LTC2983CLX#PBF - Analog Devices

Description: Multi-Sensor High Accuracy%D Digital Temperature%D Measurement System

Download LTC2983CLX#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

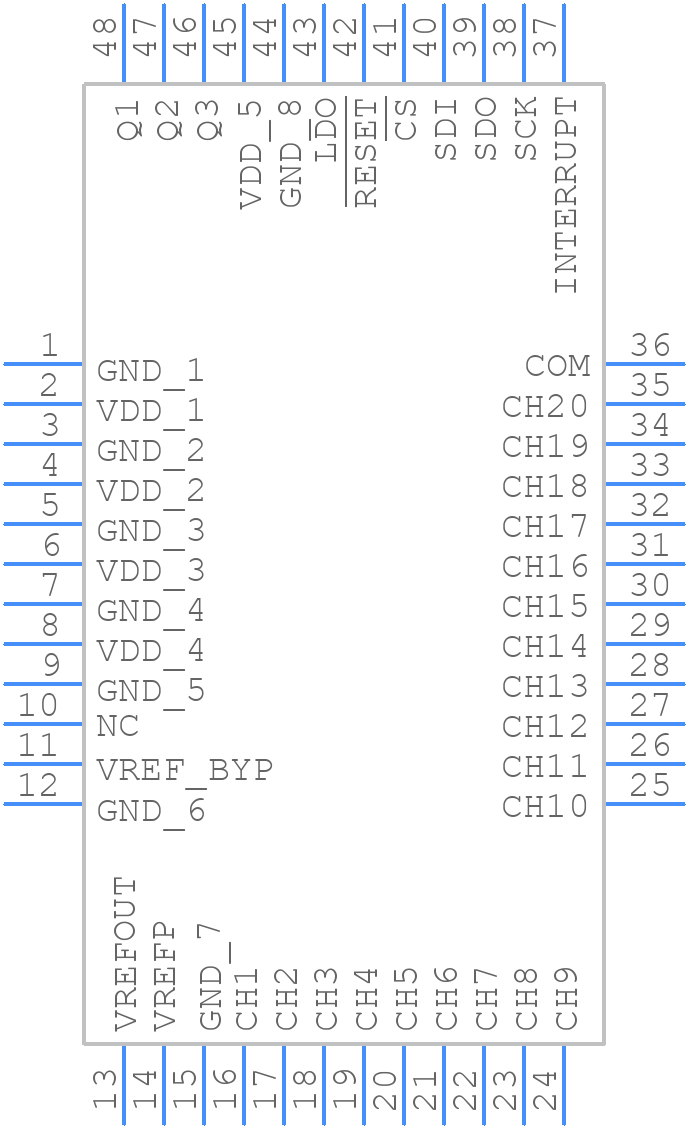

Symbol
LTC2983CLX#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2983CLX#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead (7mm x 7mm) LQFP
click to zoom
3D Models
LTC2983CLX#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-Lead (7mm x 7mm) LQFP
click to zoom

LTC2983CLX#PBF Details

  • Manufacturer Part Number:

    LTC2983CLX#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, LEAD FREE, PLASTIC, MS-026, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    0.1 Cel

  • Body Breadth:

    7 mm

  • Body Height:

    1.6 mm

  • Body Length or Diameter:

    7 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Number of Terminals:

    48

  • Operating Current-Max:

    20 mA

  • Operating Temperature-Max:

    70 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.85 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LTC2983CLX#PBF Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LTC2983CLX#PBF is 1.5W. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • To ensure accurate temperature measurement, it's essential to follow proper PCB layout and thermal design guidelines. This includes keeping the device away from heat sources, using a solid ground plane, and minimizing thermal gradients on the PCB.
  • The recommended layout and routing for the LTC2983CLX#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing digital signals near the analog inputs.
  • The LTC2983CLX#PBF does not require calibration. However, it's recommended to follow the application note guidelines for optimizing the device's performance, including setting the correct gain and offset, and using the internal or external reference voltage.
  • The maximum clock frequency for the LTC2983CLX#PBF is 50MHz. However, the recommended clock frequency is 10MHz to 20MHz for optimal performance and to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC2983CLX#PBF Overview

Use the download button to access the LTC2983CLX#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC29, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
