LTC2986ILX#PBF - Analog Devices

Description: Board Mount Temperature Sensors 10-Channel Multi-Sensor High Accuracy Digital Temperature Measurement System w/ EEPROM

Download LTC2986ILX#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

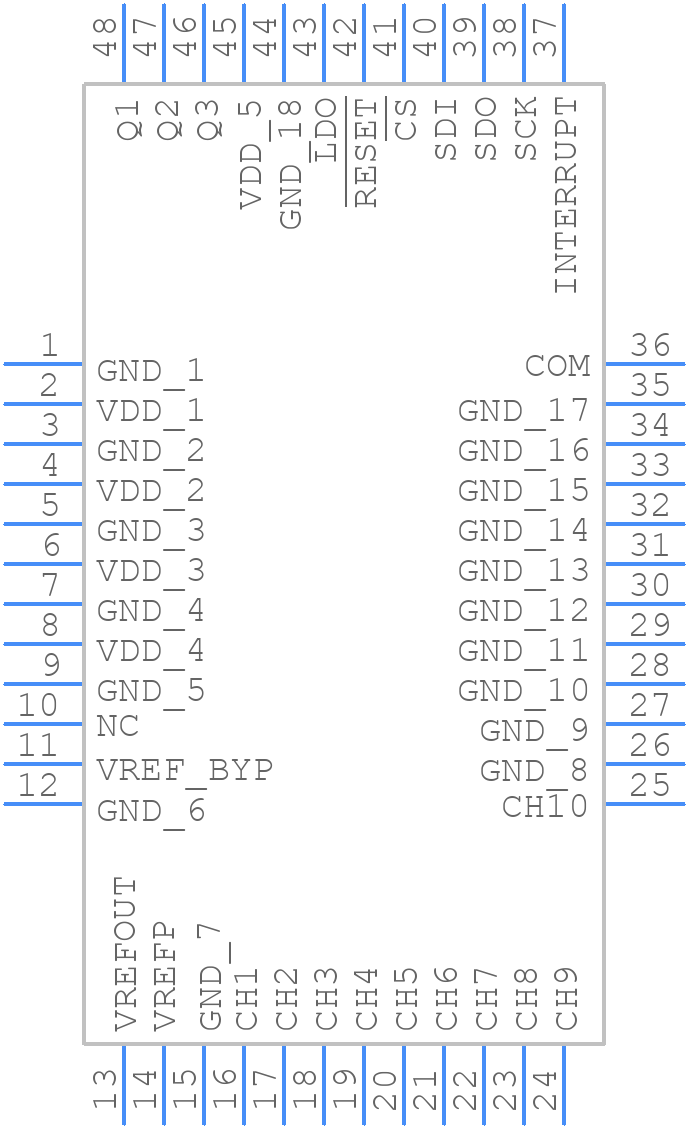

LTC2986ILX#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC2986ILX#PBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead (7mm x 7mm) LQFP
click to zoom
3D Models
LTC2986ILX#PBF - Analog Devices - 3D model - Quad Flat Packages - 48-Lead (7mm x 7mm) LQFP
click to zoom

LTC2986ILX#PBF Details

  • Manufacturer Part Number:

    LTC2986ILX#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1760

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    0.1 Cel

  • Body Breadth:

    7 mm

  • Body Height:

    1.4 mm

  • Body Length or Diameter:

    7 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Number of Terminals:

    48

  • Operating Current-Max:

    20 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape/Style:

    SQUARE

  • R0-Nom:

    100 Ω

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LTC2986ILX#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC2986ILX involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize performance in noisy environments, use a low-pass filter on the input signals, add a ferrite bead or a common-mode choke on the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The LTC2986ILX has an operating temperature range of -40°C to 125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the LTC2986ILX can be used with an external voltage reference, but it's essential to ensure the reference voltage is stable and has a low noise output. The device's performance may vary depending on the quality of the external reference.
  • Common issues with the LTC2986ILX include incorrect pin connections, inadequate power supply decoupling, and noise on the input signals. To troubleshoot, check the device's pin connections, ensure proper power supply decoupling, and use a scope to analyze the input signals.
