LTC3106EFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3106EFE#PBF - DC/DC CONV, BUCK-BOOST, TSSOP-20

Download LTC3106EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

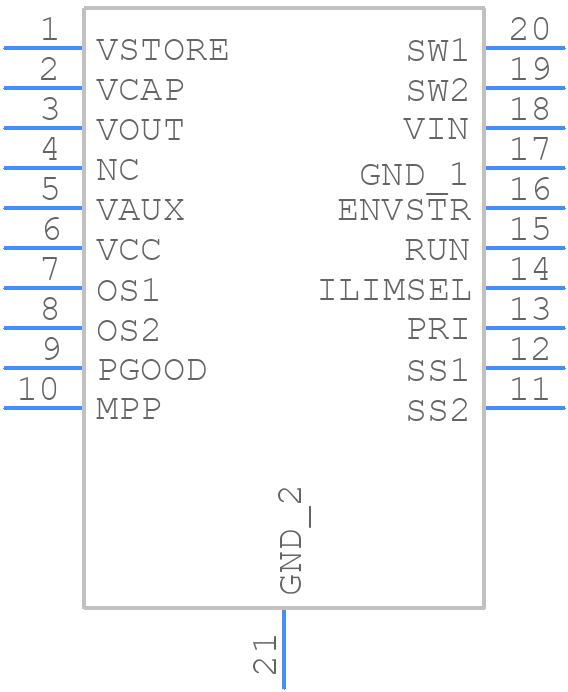

Symbol
LTC3106EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3106EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE(TSSOP)_CC_Variation
click to zoom
3D Models
LTC3106EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE(TSSOP)_CC_Variation
click to zoom

LTC3106EFE#PBF Details

  • Manufacturer Part Number:

    LTC3106EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1950

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO HAS OUTPUT VOLTAGES= 2.2V, 3.3V, 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    5.1 V

  • Input Voltage-Min:

    0.25 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    1.845 V

  • Output Voltage-Min:

    1.755 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3106EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3106EFE is 12V, but it's recommended to operate within the specified input voltage range of 3.5V to 10V for optimal performance.
  • To optimize inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance that minimizes losses.
  • To minimize noise and EMI, keep the power traces short and wide, use a solid ground plane, and place the input and output capacitors close to the IC. Also, keep the inductor and diode away from sensitive analog signals and use a shielded inductor if possible.
  • Check the input voltage, output voltage, and feedback voltage to ensure they are within the specified ranges. Verify that the feedback resistors are correctly connected and that the output capacitor is properly sized. Also, check for any signs of overheating or excessive current draw.
  • The LTC3106EFE is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to prevent overheating, especially in high-temperature environments.
