Part Image

LTC3114HDHC-1#PBF - Analog Devices

Description: IC REG BCK BST ADJ 1A 16DFN

Download LTC3114HDHC-1#PBF Model

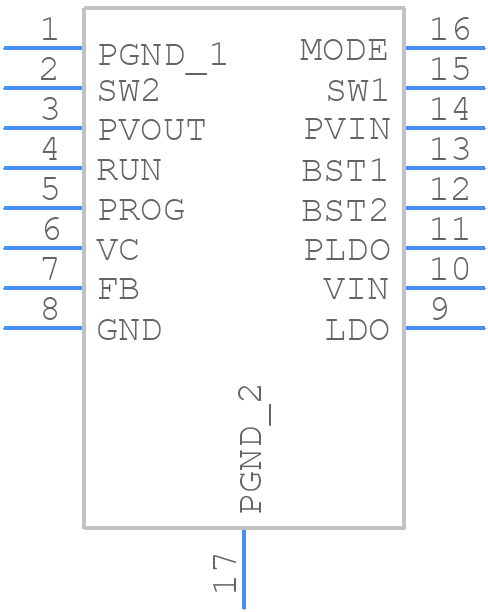

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3114HDHC-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHC DFN-5X3
click to zoom
3D Models
LTC3114HDHC-1#PBF - Analog Devices  - 3D model - Small Outline No-lead - DHC DFN-5X3
click to zoom

LTC3114HDHC-1#PBF Details

  • Manufacturer Part Number:

    LTC3114HDHC-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 2.7V TO 40V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.2 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current-Max:

    2.3 A

  • Output Voltage-Max:

    40 V

  • Output Voltage-Min:

    2.7 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3114HDHC-1#PBF Overview

Use the download button to access the LTC3114HDHC-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC31, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to LTC3114HDHC-1#PBF

Showing 0 results

LTC3114HDHC-1#PBF Alternates

Showing results

Image Part Number Model
Part Image LTC3114IDHC-1#TRPBF Analog Devices Inc

40V, 1A Synchronous Buck-Boost DC/DC Converter with Programmable Output Current

Part Image LTC3114IDHC-1#WPBF Analog Devices Inc

40V, 1A Synchronous Buck-Boost DC/DC Converter with Programmable Output Current

Part Image LTC3114MPDHC-1#TRPBF Analog Devices Inc

40V, 1A Synchronous Buck-Boost DC/DC Converter with Programmable Output Current

Part Image LTC3114EDHC-1#TRPBF Analog Devices Inc

40V, 1A Synchronous Buck-Boost DC/DC Converter with Programmable Output Current

Part Image LTC3114HDHC-1#TRPBF Analog Devices Inc

40V, 1A Synchronous Buck-Boost DC/DC Converter with Programmable Output Current

For a full list of alternate parts for LTC3114HDHC-1#PBF, check out Findchips.com
