LTC3118EFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3118EFE#PBF - DC/DC CONV, BUCK-BOOST, 1.2MHZ, TSSOP-28

Download LTC3118EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

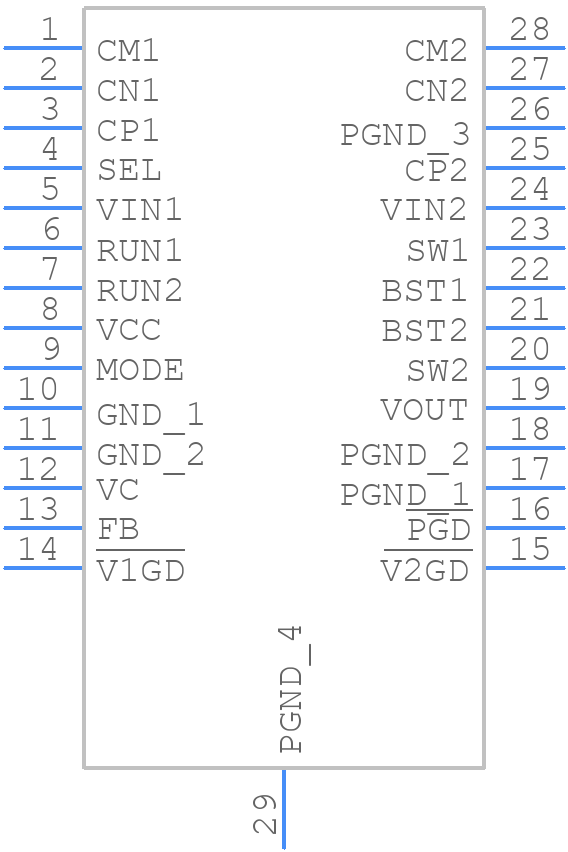

LTC3118EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3118EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3118EFE#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3118EFE#PBF Details

  • Manufacturer Part Number:

    LTC3118EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 2 V TO 18 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3118EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3118EFE is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To optimize inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter and a DC resistance that minimizes losses.
  • To minimize EMI and noise, keep the power traces short and wide, use a solid ground plane, and place the input and output capacitors close to the IC. Also, ensure that the inductor is placed away from sensitive analog signals and that the feedback trace is shielded from the power traces.
  • The output voltage of the LTC3118EFE can be adjusted by changing the resistive divider ratio of the feedback network. The output voltage is determined by the ratio of RFBT to RFB, where VOUT = 0.8V x (1 + RFBT/RFB).
  • The maximum ambient temperature range for the LTC3118EFE is -40°C to 125°C, but the device's performance and reliability may degrade at extreme temperatures.
