LTC3118EUFD#PBF - Analog Devices

Description: Conv DC-DC 2.2V to 18V Step Down/Step Up Single-Out 2V to 18V 2A 24-Pin QFN EP Tube

Download LTC3118EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

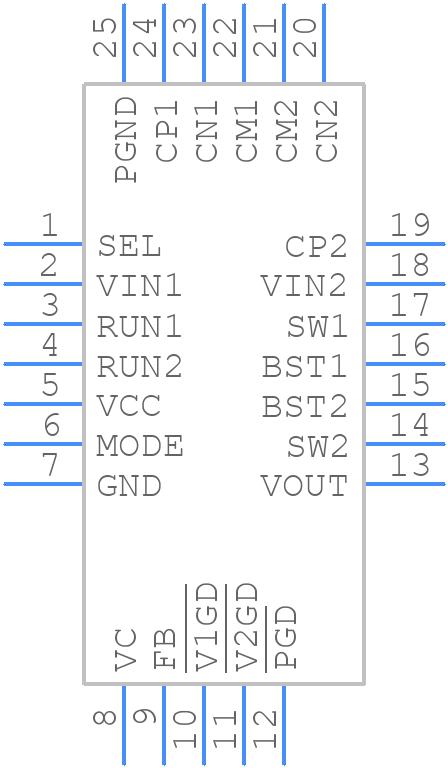

Symbol
LTC3118EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3118EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LTC3118EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Plastic QFN (4mm × 5mm)
click to zoom

LTC3118EUFD#PBF Details

  • Manufacturer Part Number:

    LTC3118EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1696

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 2 V TO 18 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC3118EUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To optimize the inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 2x the peak current, and a DC resistance of less than 100mΩ.
  • To minimize EMI and noise, keep the power traces short and wide, and use a solid ground plane. Place the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. Use a shielded inductor and keep it away from sensitive analog signals.
  • The output voltage of the LTC3118EUFD can be adjusted by changing the resistor divider ratio of the FB pin. Use the formula VOUT = 0.8V x (R1 + R2) / R2 to calculate the desired resistor values.
  • The maximum ambient temperature range for the LTC3118EUFD is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3118EUFD#PBF Overview

Use the download button to access the LTC3118EUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC31, or try a keyword search, such as Switching Regulator or Controllers
