LTC3118HFE#PBF - Analog Devices

Description: Switching Controllers 18V, 2A Buck-Boost DC/DC Converter with Low-Loss Dual Input PowerPath

Download LTC3118HFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

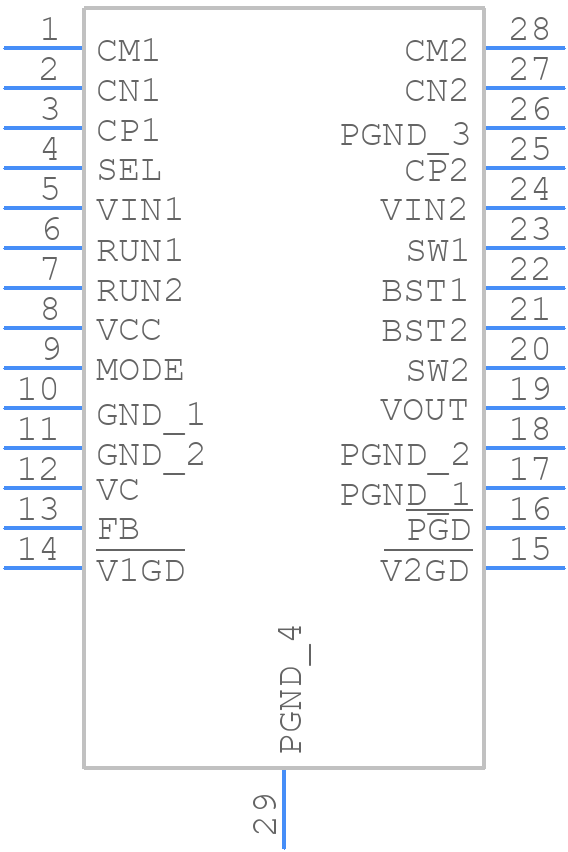

LTC3118HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3118HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3118HFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3118HFE#PBF Details

  • Manufacturer Part Number:

    LTC3118HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 2 V TO 18 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3118HFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3118HFE is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To optimize inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current at least 1.5 times the peak current, and a DC resistance less than 100mΩ.
  • To minimize EMI and noise, keep the switching node (SW pin) away from sensitive analog nodes, use a solid ground plane, and place the input and output capacitors close to the IC. Also, use a shielded inductor and orient it to minimize radiation.
  • To configure the LTC3118HFE for a specific output voltage, use the FB pin and a resistive divider to set the output voltage. The resistive divider should be connected between the output voltage and ground, with the FB pin connected to the center tap of the divider.
  • The maximum ambient temperature range for the LTC3118HFE is -40°C to 125°C, but the junction temperature should not exceed 150°C for reliable operation.
