LTC3122IDE#PBF - Analog Devices

Description: 15V, 2.5A Synchronous Step-Up DC/DC Converter with Output Disconnect

Download LTC3122IDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

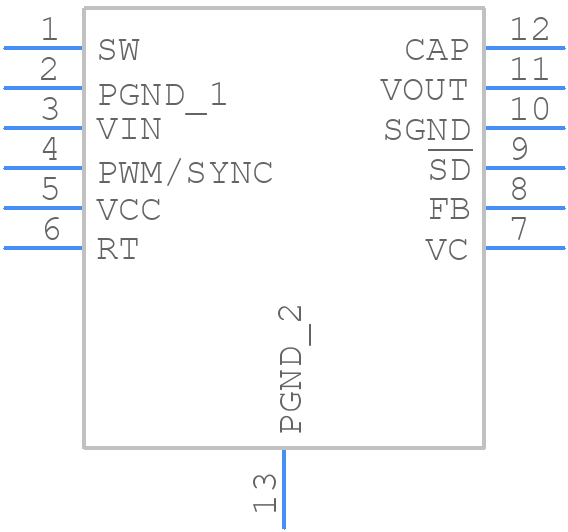

Symbol
LTC3122IDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3122IDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LTC3122IDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)
click to zoom

LTC3122IDE#PBF Details

  • Manufacturer Part Number:

    LTC3122IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ADJUSTABLE OUTPUT MODE FROM 2.2 TO 15 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.5 A

  • Output Voltage-Max:

    4.5 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    4.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1150 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3122IDE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
  • To optimize the inductor selection, consider the following factors: inductance value, DC resistance, and saturation current. A good starting point is to choose an inductor with an inductance value between 1.5uH to 3.3uH, and a DC resistance of less than 100mΩ. Also, ensure the inductor can handle the peak current of the converter.
  • For optimal performance, it's recommended to follow a star-grounding layout, where the GND pins of the IC are connected to a central ground point. Keep the high-current paths (VIN, VOUT, and SW) short and wide, and avoid routing sensitive signals near the inductor or switch node. Also, use a solid ground plane to reduce noise and EMI.
  • The output voltage of the LTC3122 can be adjusted by changing the resistor divider ratio of the FB pin. The output voltage is determined by the equation: VOUT = 0.8V x (R1 + R2) / R2. Choose R1 and R2 to achieve the desired output voltage, ensuring that R1 is at least 1kΩ and R2 is at least 2kΩ.
  • The RUN pin is an active-high enable input that allows the user to turn the converter on and off. To use it, connect the RUN pin to a logic-level signal (e.g., from a microcontroller) to enable or disable the converter. When the RUN pin is high, the converter is enabled, and when it's low, the converter is disabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3122IDE#PBF Overview

Use the download button to access the LTC3122IDE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC31, or try a keyword search, such as Switching Regulator or Controllers
