LTC3126EFE#PBF - Analog Devices

Description: Switching Voltage Regulators 42V, 2.5A Synchronous Step-Down Regulator with Lossless PowerPath

Download LTC3126EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

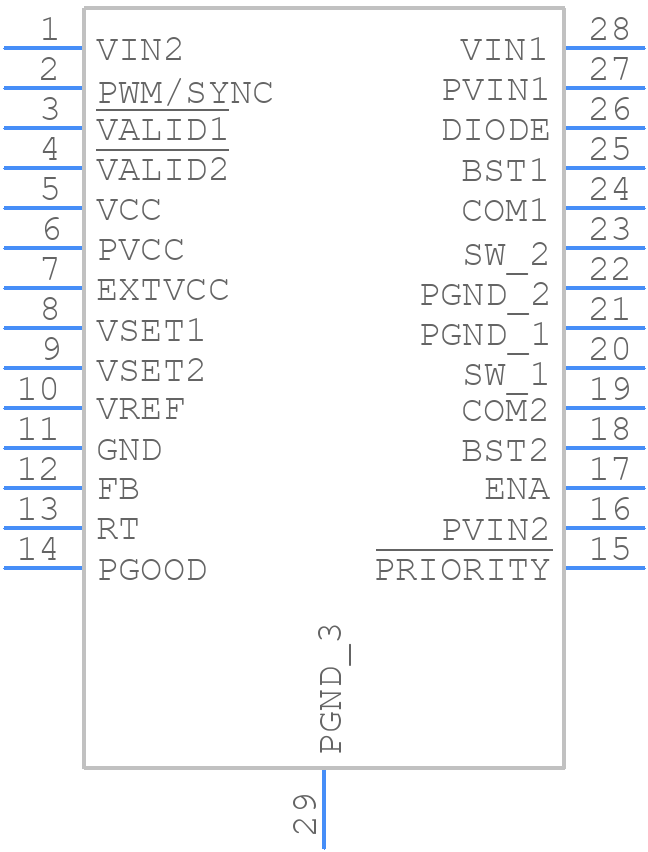

LTC3126EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3126EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3126EFE#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3126EFE#PBF Details

  • Manufacturer Part Number:

    LTC3126EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    42 V

  • Output Voltage-Min:

    0.818 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.247 mm

  • Supply Voltage-Nom (Vsup):

    4.22 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC3126EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To optimize inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current at least 1.5 times the peak current, and a DC resistance less than 100mΩ.
  • To minimize noise and EMI, keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-frequency switching nodes (e.g., LX and SW) away from sensitive analog nodes. Also, use a shielded inductor and orient it to minimize radiation.
  • The EN pin can be configured to control startup and shutdown behavior by connecting it to a logic signal, a resistor divider, or a capacitor. For example, connecting EN to VIN through a resistor divider sets the undervoltage lockout (UVLO) threshold, while connecting it to GND through a capacitor sets the startup delay.
  • To ensure reliable operation, keep the junction temperature (TJ) below 125°C. Use a thermal pad or heat sink to dissipate heat, and ensure good airflow around the device. Also, consider using a thermally enhanced package or a heat spreader to reduce thermal resistance.
