LTC3126EUFD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3126EUFD#PBF - DC/DC CONV, SYNC BUCK, 2.2MHZ, QFN-28

Download LTC3126EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

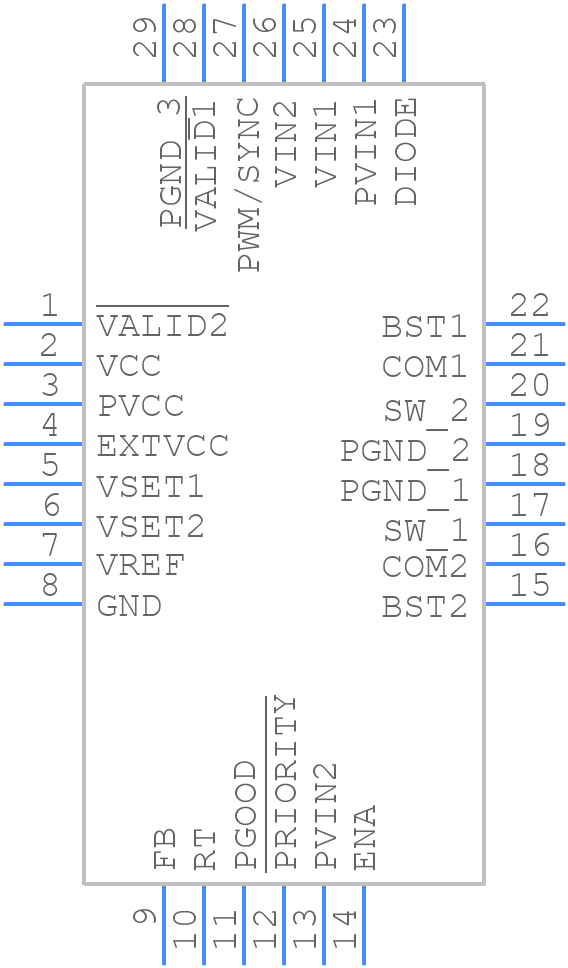

Symbol
LTC3126EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3126EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead (4mm × 5mm) Plastic QFN
click to zoom
3D Models
LTC3126EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead (4mm × 5mm) Plastic QFN
click to zoom

LTC3126EUFD#PBF Details

  • Manufacturer Part Number:

    LTC3126EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    42 V

  • Output Voltage-Min:

    0.818 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    4.22 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC3126EUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 18V, but it's recommended to keep it below 15V for optimal performance and to prevent damage to the internal components.
  • To optimize the inductor selection, consider the following factors: inductance value, DC resistance, and saturation current. A good starting point is to choose an inductor with an inductance value between 1.5uH to 3.3uH, a DC resistance less than 100mΩ, and a saturation current greater than the peak current of the converter.
  • To minimize EMI and noise, follow these PCB layout guidelines: keep the input and output capacitors close to the VIN and VOUT pins, respectively; keep the inductor and capacitors away from sensitive analog signals; use a solid ground plane; and use a shielded inductor or a common-mode choke to reduce radiated emissions.
  • The output voltage of the LTC3126EUFD can be adjusted by changing the resistor divider network connected to the FB pin. The output voltage is determined by the ratio of the resistors, so adjusting the values of R1 and R2 can change the output voltage.
  • The maximum output current that the LTC3126EUFD can deliver is 2A, but it's recommended to keep the output current below 1.5A for optimal performance and to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3126EUFD#PBF Overview

Use the download button to access the LTC3126EUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC31, or try a keyword search, such as Switching Regulator or Controllers
