LTC3130EMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3130EMSE#PBF - DC/DC CONV, BUCK-BOOST, 1-25V, MSOP-16

Download LTC3130EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

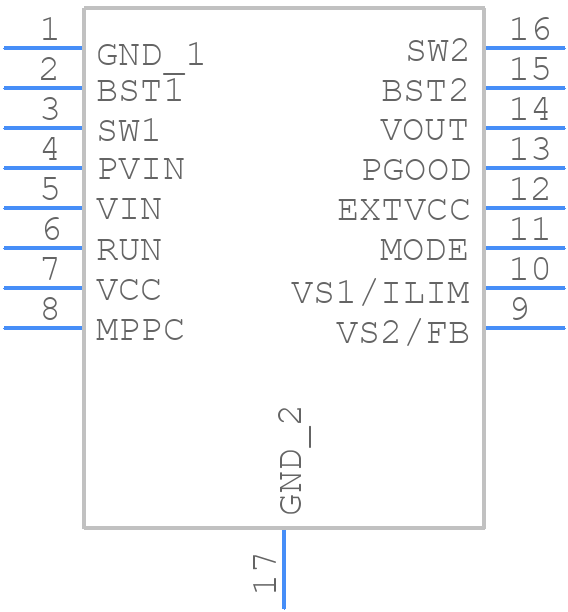

Symbol
LTC3130EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3130EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC3130EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC3130EMSE#PBF Details

  • Manufacturer Part Number:

    LTC3130EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ADJ OUTPUT VOLTAGE= 1V TO 25V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    0.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.15 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3130EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3130EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3130EMSE, ensure that the input voltage is within the recommended range, use high-quality capacitors with low ESR, and minimize the output voltage ripple by using a sufficient output capacitor. Additionally, ensure that the PCB layout is optimized for low noise and good thermal dissipation.
  • The maximum ambient temperature for the LTC3130EMSE is 85°C. However, the device can operate at higher temperatures with derating. It's essential to ensure that the device is properly heat-sinked and that the thermal dissipation is adequate to prevent overheating.
  • Yes, the LTC3130EMSE is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3130EMSE, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the output. If the issue persists, consult the datasheet and application notes for guidance.
