LTC3130IMSE-1#TRPBF - Analog Devices

Description: Switching Voltage Regulators 25V, 600mA Buck-Boost DC/DC Conv w/ 1.6

Download LTC3130IMSE-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

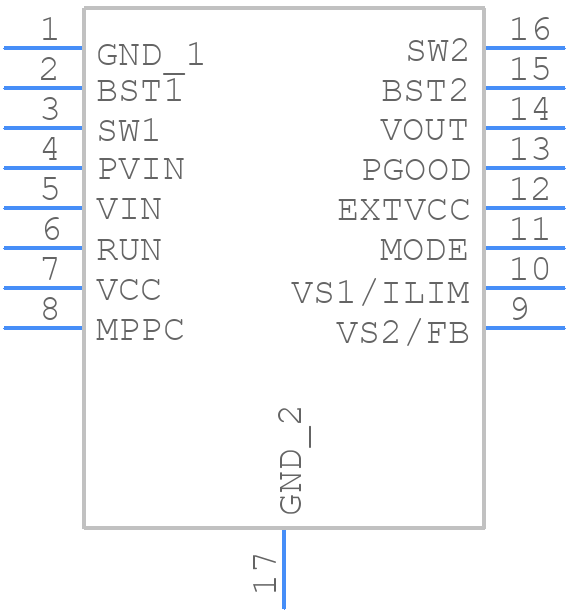

Symbol
LTC3130IMSE-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3130IMSE-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package
click to zoom
3D Models
LTC3130IMSE-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package
click to zoom

LTC3130IMSE-1#TRPBF Details

  • Manufacturer Part Number:

    LTC3130IMSE-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS OUTPUT VOLTAGES= 3.3V, 5V, 12V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    0.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.7 A

  • Output Voltage-Max:

    1.85 V

  • Output Voltage-Min:

    1.75 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3130IMSE-1#TRPBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
  • The datasheet provides guidelines for inductor selection, but it's also important to consider factors such as inductor core material, size, and saturation current. A good starting point is to use an inductor with a saturation current rating of at least 2x the maximum output current, and a core material with low core loss at the switching frequency.
  • The datasheet specifies an operating temperature range of -40°C to 125°C, but it's also important to consider the maximum ambient temperature rating, which is typically 85°C for this device. Exceeding this temperature can affect reliability and performance.
  • Yes, the LTC3130IMSE-1#TRPBF is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • Troubleshooting issues with the LTC3130IMSE-1#TRPBF typically involves checking the PCB layout, component selection, and input/output voltage levels. It's also recommended to use a scope to measure the output voltage and current, and to check for signs of oscillation or instability, such as ringing or excessive noise.
