LTC3130IUDC#PBF - Analog Devices

Description: Conv DC-DC 2.4V to 25V Step Down/Step Up Single-Out 1V to 25V 0.6A 20-Pin QFN EP Tube

Download LTC3130IUDC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

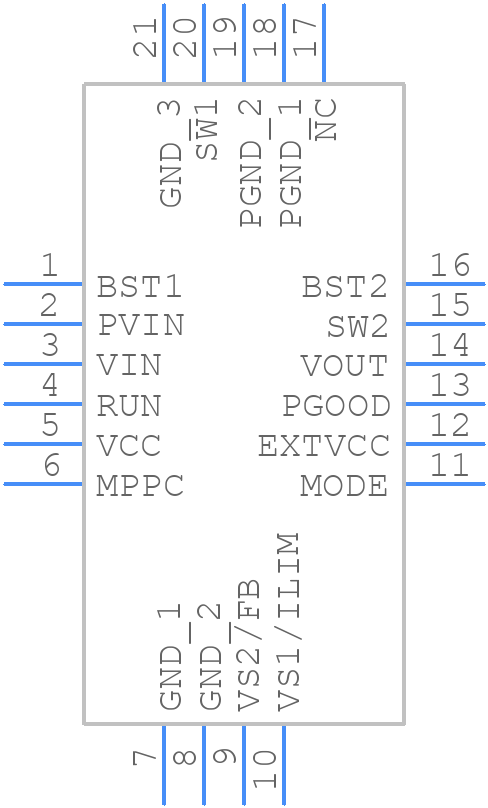

Symbol
LTC3130IUDC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3130IUDC#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UDC Package 20-Lead Plastic QFN (3mm × 4mm)
click to zoom
3D Models
LTC3130IUDC#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UDC Package 20-Lead Plastic QFN (3mm × 4mm)
click to zoom

LTC3130IUDC#PBF Details

  • Manufacturer Part Number:

    LTC3130IUDC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ADJ OUTPUT VOLTAGE= 1V TO 25V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    0.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.15 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC3130IUDC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3130 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended on the output.
  • The maximum input voltage that the LTC3130 can handle is 40V. However, it's recommended to operate the device within the specified input voltage range of 2.9V to 36V for optimal performance and reliability.
  • The LTC3130 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management in high-temperature environments.
  • To synchronize the switching frequency of multiple LTC3130 devices, connect the SYNC pin of each device to a common clock signal. This ensures that all devices switch at the same frequency, reducing electromagnetic interference (EMI) and improving overall system performance.
